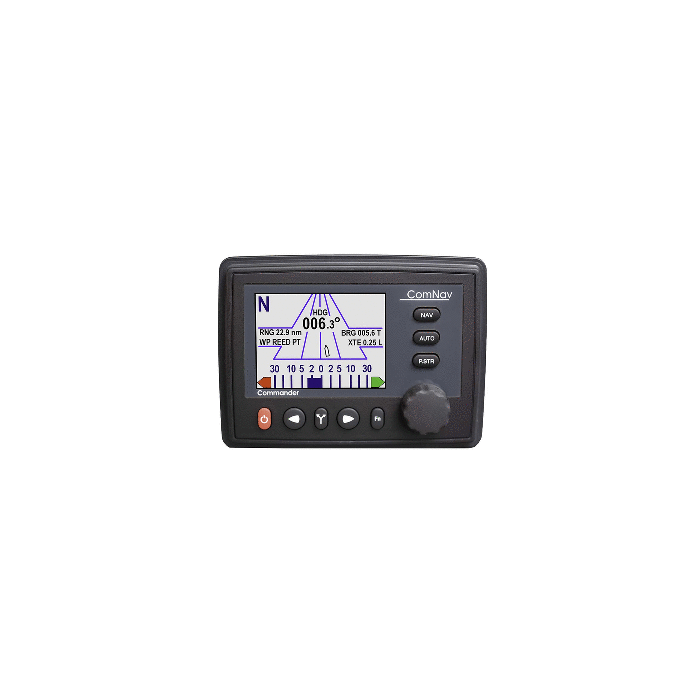

COMNAV COMMANDER P2 COLOR PACK W/ FLUXGATE COMPASS & ROTARY 10110009B

Commander P2 Color Pack w/Fluxgate Compass & Rotary Feedback (Without Pump)

Engineered for Performance

Features:

• Auto Learning using Intelligent Steering Technology — IST
• Auto Setup — automatic drive detection, automatic pilot calibration & automatic compass compensation
• Auto Sea State adjustment for reliability in all weather conditions
• Sunlight Viewable TFT LCD or silver backed high contrast monochrome LCD
• Work Mode — Superbly suited for professional performance on vessels requiring ultimate rudder response
• Adjustments can be made “on the fly”
• Advanced Power Features include automatic helm bias, automatic leeway control for minimizing course errors due to wind and tide
• Automatic Thruster assist for dead-ahead slow or station keeping (option)
• Proportional Rate Control to provide a gentle smooth response at fast cruisingspeeds
• NAV Mode provides adaptive precise track steering
• NMEA 0183 input/output ports
• Quick Turn Selection — continuous circle, U-turn, Emergency MOB to steer the Williamson-Recovery turn
• FISH ZAG to allow the sport fisher to mimic the actions of live prey more closely
• Simple touch 8 button illuminated keypad
• Multi-language capability configurable in English, French, Italian, Spanish and Icelandic
• Universal Mount — surface mount, flush mount or bracket mount
• Waterproof — Control head to commercial grade IP67 standards
• CE compliance for EMI and RFI immunity
• Extended 3 year warranty

Specifications:

• Operating Voltage - 10 to 30 VDC
• Power Consumption - Average 0.5 Amps, 3 Amps Peak (Lower consumption capability with low backlight setting)
• Drive Output - 20 Amps
• Navigational Interface - Dual NMEA 0183 inputs
• NMEA 0183 Outp
