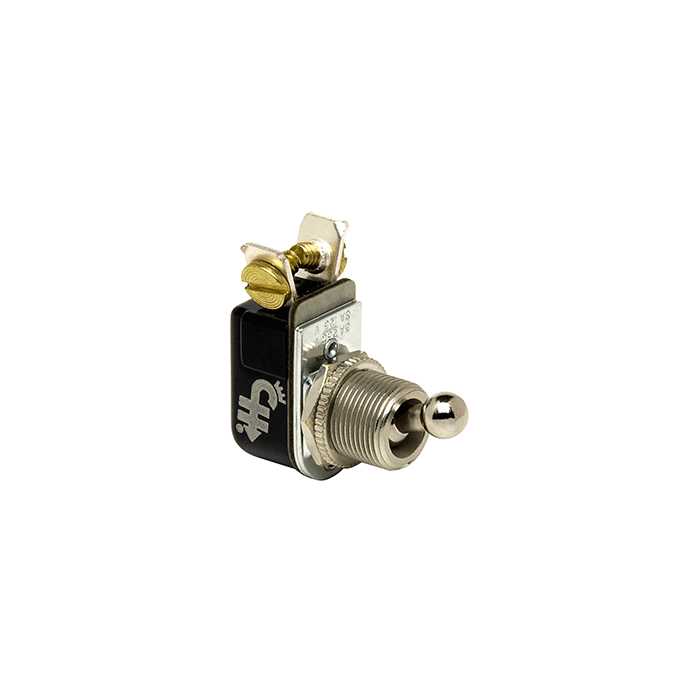

Cole Hersee Light Duty Toggle Switch SPST Off-On 2 Screw - Ball Type Actuator M-493-BP
$18.87
In stock
SKU
JMS119917
Cole Hersee Light Duty Toggle Switch SPST Off-On 2 Screw - Ball Type Actuator M-493-BP is available to buy in increments of 1
Cole Hersee Light Duty Toggle Switch SPST Off-On 2 Screw - Ball Type Actuator M-493-BP
Light Duty Toggle Switch SPST Off-On 2 Screw - Ball Type Actuator
Features:
- 10A at 12V DC
- SPST
- Down: Off, Up: On
- Ball type chrome plated brass handle, facenut and mountingstem
- Ball handle: 3/8" (9.52mm) long
- Silver contacts
- Mounting stem has 15/32" -32 thread, 15/32" (11.9mm) long, and fits panels up to 9/32" (7.2mm) thick
- Two screw terminals
- Phenolic housing with plated steel frame
- Keyway is in the down position
| Manufacturer Part Number | M-493-BP |
|---|---|
| Manufacturer | Cole Hersee |
