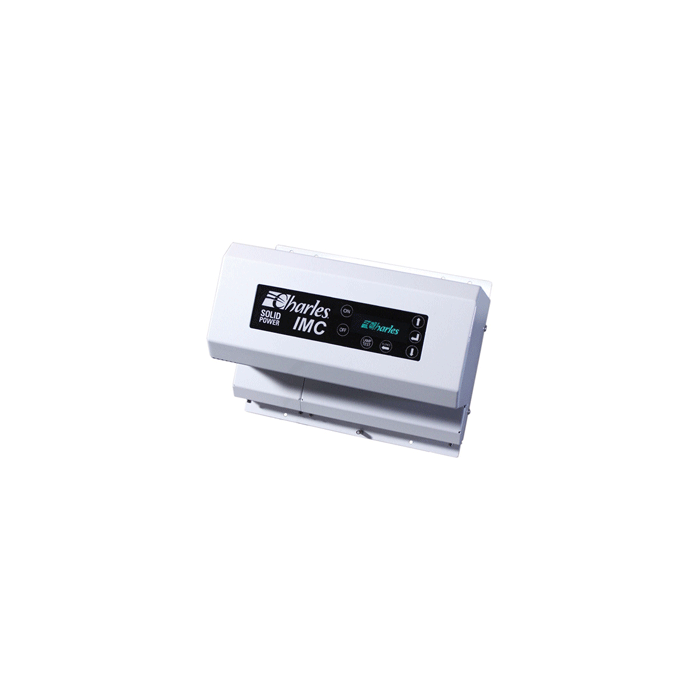

Charles IMC 20 Amp, 4 Bank Programmable Charger, 12/24V 93-IMC20-A
$1,488.18
Out of stock
SKU
JMS197081
Charles IMC 20 Amp, 4 Bank Programmable Charger, 12/24V 93-IMC20-A
IMC Chargers are state-of-the-art battery chargers specifically created for harsh marine environments. Their rugged design, configurable settings and revolutionary "man-machine" interface make these chargers the first choice for serious boaters.
The IMC Series features Universal AC Input with automatic configuration that accepts 50Hz or 60Hz input frequency and 90 to 265 VAC input voltage, and four (4) bank programmable DC Output with independent 12/24 VDC selection. The intuitive user menu allows for fast configuration of battery voltage (12 or 24 VDC), as well as battery type (Lead Acid, AGM, Gel Cell, NiCad), on each individual bank.
In addition, the charging output amperage may be adjusted on any bank to accommodate lower amperage requirements of a specific on-board electrical system; such as the bow thruster and/or windlass compartments.
FEATURES
CHARGING SYSTEMS
Four bank programmable chargers with independent 12/24 VDC selection
6 models available in 20 amp increments from 20 to 120 amps
Limp Home Mode (40 amp units and above) allows power flow
to continue operation at a lower output level if one power module fails
Smart alarm package provides output failure, high and low voltage and
battery failure with audible alarm
Optional remote battery temperature sensors
DISPLAY TECHNOLOGY AND CONFIGURATION
Simple intuitive menus for fast configuration (AC input voltage, DC
output voltage, charge current, charge mode, battery type, battery fault
indicator, over temp indicator with auto current reduction)
Bright vacuum fluorescent display (VFD) for easy viewing "Soft-Touch" buttons put controls at your fingertips
Smart Memory Button stores settings during power off
Settable pass code lock out
English and Metric units
Optional remote display
INPUT POWER REQUIREMENTS AND AGENCY APPROVAL
Universal AC input with automatic configuration accepts 50Hz or 60Hz
input frequency and large input voltage range from 90 VAC to 265 VAC
Power factor controlled (PFC) meets CE and the new US, Canada and
UK power requirements
Marine UL Listing, ABS, FCC and CE certifications pending
Made in the USA
5 year Warranty
Voltage - Charger Input = 90-265vac | Portable = No | Amps - Output = 20amp | Voltage - Output (Volts) = 12/24 | Banks = 4 | Battery Type = Lead Acid/Gel/AGM | Charger Type = Multi-Stage
The IMC Series features Universal AC Input with automatic configuration that accepts 50Hz or 60Hz input frequency and 90 to 265 VAC input voltage, and four (4) bank programmable DC Output with independent 12/24 VDC selection. The intuitive user menu allows for fast configuration of battery voltage (12 or 24 VDC), as well as battery type (Lead Acid, AGM, Gel Cell, NiCad), on each individual bank.
In addition, the charging output amperage may be adjusted on any bank to accommodate lower amperage requirements of a specific on-board electrical system; such as the bow thruster and/or windlass compartments.
FEATURES
CHARGING SYSTEMS
to continue operation at a lower output level if one power module fails
battery failure with audible alarm
DISPLAY TECHNOLOGY AND CONFIGURATION
output voltage, charge current, charge mode, battery type, battery fault
indicator, over temp indicator with auto current reduction)
INPUT POWER REQUIREMENTS AND AGENCY APPROVAL
input frequency and large input voltage range from 90 VAC to 265 VAC
UK power requirements
Voltage - Charger Input = 90-265vac | Portable = No | Amps - Output = 20amp | Voltage - Output (Volts) = 12/24 | Banks = 4 | Battery Type = Lead Acid/Gel/AGM | Charger Type = Multi-Stage
| UPC Code | 795836800015 |
|---|---|
| Manufacturer Part Number | 93-IMC20-A |
| Manufacturer | Charles Marine Products |
