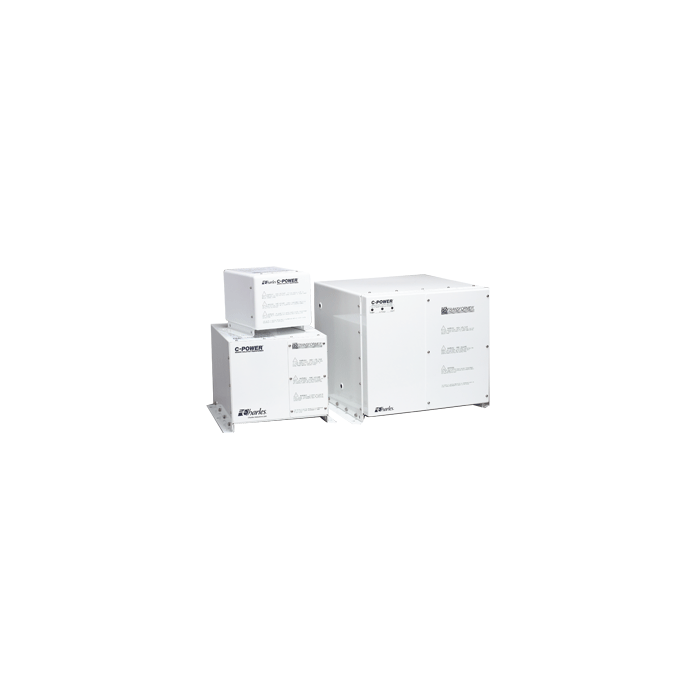

Charles 64 Amp Isolation Transformer - 15 kVA - 240VAC 93-IXFMR15I-A

When properly installed, Charles Marine Isolation transformers will electrically isolate the AC shore power from the boat"s AC power system. The boat"s electrical system and the grounding conductor are not actually connected to the shore-side power. There is no direct electrical connection between earth-grounded shore AC power and the onboard electrical system. The shore ground is connected to a shield that is wound between the primary (shore) and the secondary (boat) transformer winding. The connection of this grounding wire only to the shield of the transformer isolates the boat"s AC electrical system from shore.

Compliance with independent testing lab requirements maximize safety

Marine UL listing ensures durability and safety

New European CE EMC Certification (50hz models)

Greatly reduced potential for in-water shock hazard

Eliminates the need for polarity alarms and galvanic isolators
Superior technology guarantees top performance

Fully-encapsulated components and transformer windings

Full current carrying shield per ABYC E-8.20.1
Easy to install and use

Occupies less space and easier to install than most units

Terminal blocks for easy customer connections

3.6 KVA and 12 KVA units mount to either bulkhead or deck. 24 KVA unit mounts to deck only.
Corrosion-resistant housing and components

Convection-cooled enclosure meets the intent of NMEA 3R requirements.
