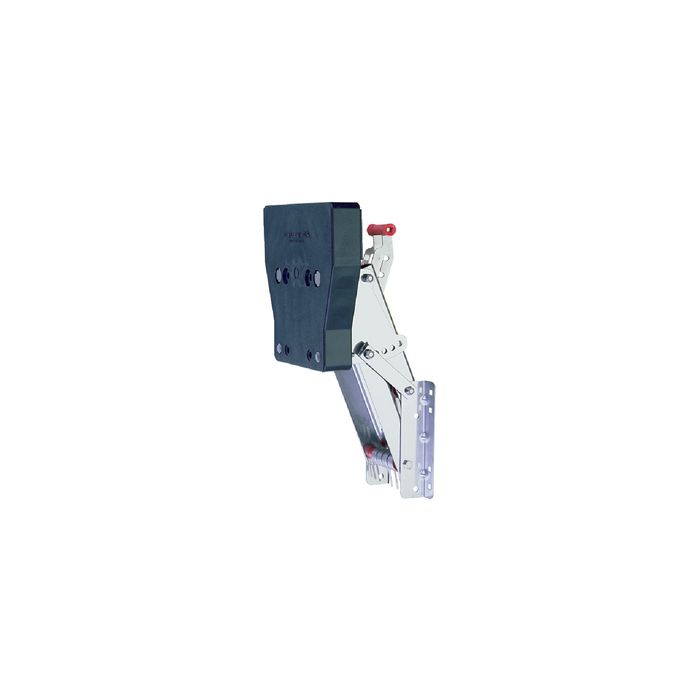

Ss Outboard Mtr Brkt 7.5-20Hp Poly Gar-71056

Garelick Ob Mtr Brkt SS 7.5-20Hp Poly GAR-71056

Made in the U.S.A.
These wide-track body stainless steel brackets are designed to handle 2-stroke motors. Stainless springs help balance motor weight for easier lifting and lowering. Built-in transom angle adjustment and a 4-position locking height adjustment for optimal height settings. Made of tough 304 Stainless Steel. Fits all style motors - Extra Wide (11-1/2") Black Poly Mounting Board for newer, wider style motor locking clamps.The mounting pad is 2" thick x 11-1/2" wide. Designed to also accommodate the width dimensions of late model auxiliary outboard motors. Mounting bracket is 7-5/8" W x 7-7/8" H.

HP: 7-1/2 - 20
Max Load: 115 lbs.
Vertical Travel: 11-1/4"

SKU: GAR-71056
Category: Engine > Outboard Motor Brackets
