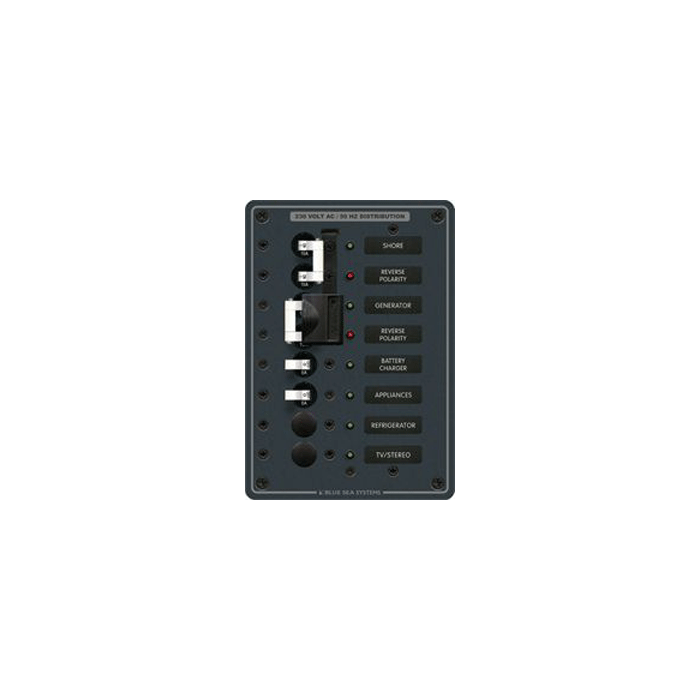

Blue Sea 8567 AC Toggle Source Selector (230V) - 2 Sources + 4 Positions 8567
$420.66
In stock
SKU
JMS116625
Blue Sea 8567 AC Toggle Source Selector (230V) - 2 Sources + 4 Positions 8567 is available to buy in increments of 1
BLUE SEA 8567 BREAKER PANEL 230VAC SOURCE
AC Toggle Source Selector (European)
PN: 8567
White Switches
(2) 16A Double Pole Circuit Breakers Installed
(2) 8A Single Pole Circuit Breakers Installed
Features:
PN: 8567
White Switches
Features:
- Double pole AC main circuit breakers with installed lockout slide
- Prevents connecting both AC sources simultaneously
- Maximum panel amperage - 50 Amperes
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instrcutions and cutout template included
- Includes set of 30 common Large Format Labels
- Over 500 individual labels available
- For 230V AC Systems
| UPC Code | 632085085674 |
|---|---|
| Manufacturer Part Number | 8567 |
| Manufacturer | BLUE SEA SYSTEMS |
