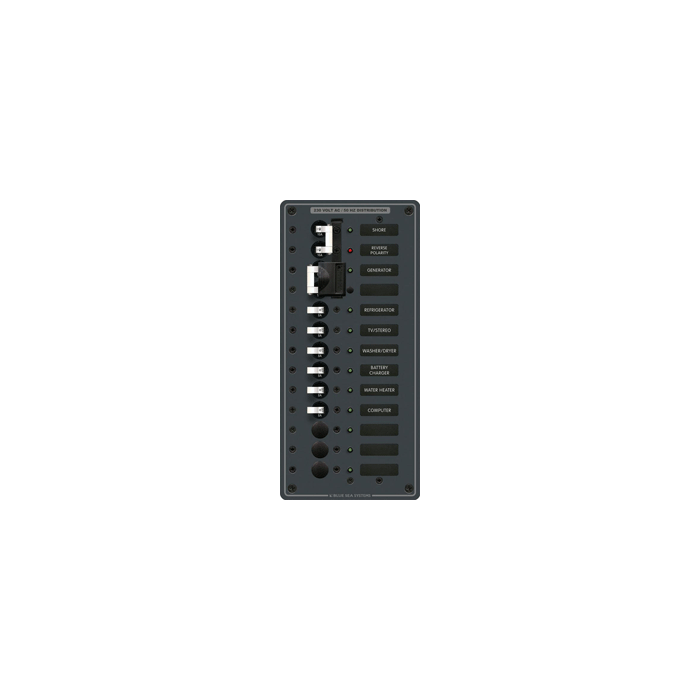

Blue Sea 3566 AC Toggle Source Selector (230V) - 2 Sources + 9 Positions 8566
$654.10
In stock
SKU
JMS116624
Blue Sea 3566 AC Toggle Source Selector (230V) - 2 Sources + 9 Positions 8566 is available to buy in increments of 1
BLUE SEA 8566 BREAKER PANEL 230VAC SOURCE
AC Toggle Source Selector (European)
PN: 8566
White Switches
(2) 16A Double Pole Circuit Breakers Installed
(6) 8A Single Pole Circuit Breakers Installed
Features:
PN: 8566
White Switches
Features:
- Double pole AC main circuit breakers with installed lockout slide
- Prevents connecting both AC sources simultaneously
- Maximum panel amperage - 50 Amperes
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instrcutions and cutout template included
- Includes set of 30 common Large Format Labels
- Over 500 individual labels available
- For 230V AC Systems
| UPC Code | 632085085667 |
|---|---|
| Manufacturer Part Number | 8566 |
| Manufacturer | BLUE SEA SYSTEMS |
