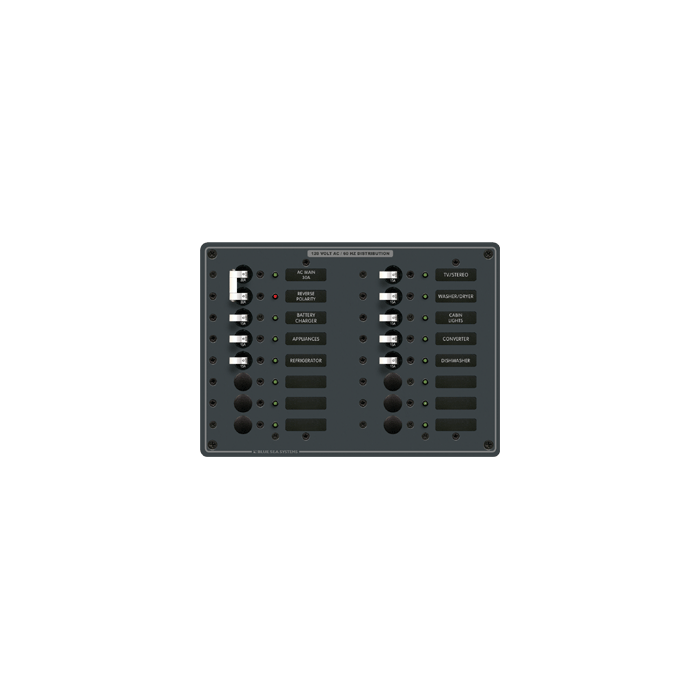

Blue Sea 8464 AC Main +16 Positions 8464
$714.49
In stock
SKU
JMS116601
Blue Sea 8464 AC Main +16 Positions 8464 is available to buy in increments of 1
BLUE SEA 8464 BREAKER PANEL 120VAC 16 POS
AC Main + 14 Positions
(1) 30A Double Pole Circuit Breakers
(8) 15A Single Pole Circuit Breakers
All hot, neutral and safety ground buses installed, fully pre-wired
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions
Maximum panel amperage - 50 Amperes
MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
Two-part polyurethane slate gray finish
Heavy 1/8" aluminum 5052 alloy
Industry standard height and width
Countersunk mounting holes throughout
Detailed installation instructions and cutout template included
Includes set of 30 common Large Format Labels
Over 500 individual Labels available
| UPC Code | 632085084646 |
|---|---|
| Manufacturer Part Number | 8464 |
| Manufacturer | BLUE SEA SYSTEMS |
