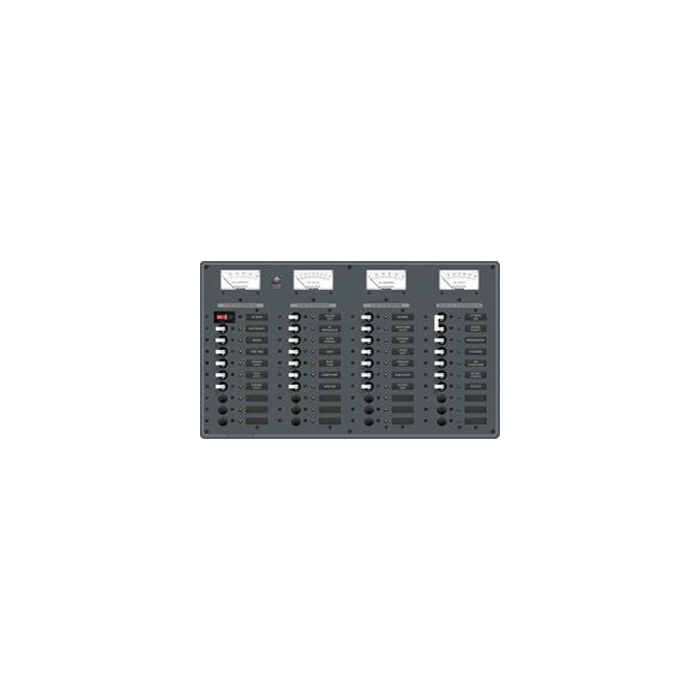

Blue Sea 8195 AC Main + 8 Positions / DC Main + 29 Positions 8195
$2,245.64
In stock
SKU
JMS116503
Blue Sea 8195 AC Main + 8 Positions / DC Main + 29 Positions 8195 is available to buy in increments of 1
BLUE SEA 8195 BREAKER PANEL 30-12V 10-230AC
AC Main + 8 Positions / DC Main + 29 Positions
Switches Color: White
Installed AC Breakers
(1) 16A
(5) 8A
Installed DC Breakers
(1) 100A Main
(20) 15A
Switches Color: White
Installed AC Breakers
Installed DC Breakers
- Voltage 230v - 12V DC
- All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
- Maximum panel amperage - 100 Amperes AC, 50 Amperes DC
| UPC Code | 632085081959 |
|---|---|
| Manufacturer Part Number | 8195 |
| Manufacturer | BLUE SEA SYSTEMS |
