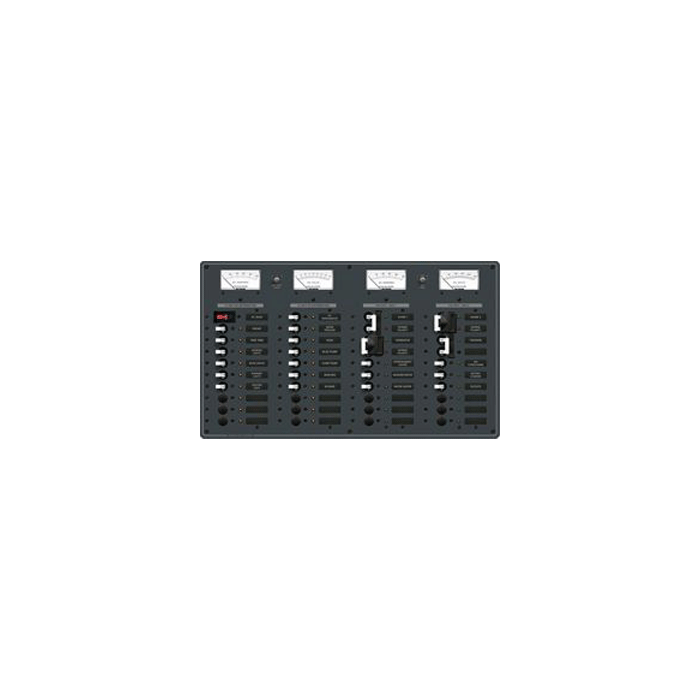

Blue Sea 8186 AC 2 Sources + 12 Positions/DC Main + 19 Positions 8186
$2,210.22
In stock
SKU
JMS116502
Blue Sea 8186 AC 2 Sources + 12 Positions/DC Main + 19 Positions 8186 is available to buy in increments of 1
BLUE SEA 8186 BREAKER PANEL 20-12V 20-230AC
AC 2 Sources + 12 Positions / DC Main + 19 Positions
Switches Color: White
Installed AC Breakers
(3) 16A
(1) 32A
(6) 8A
Installed DC Breakers
(1) 100A Main
(13) 15A
Switches Color: White
Installed AC Breakers
Installed DC Breakers
- Voltage 230v - 12V DC
- All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
- Maximum panel amperage - 100 Amperes AC, 50 Amperes DC
| UPC Code | 632085081867 |
|---|---|
| Manufacturer Part Number | 8186 |
| Manufacturer | BLUE SEA SYSTEMS |
