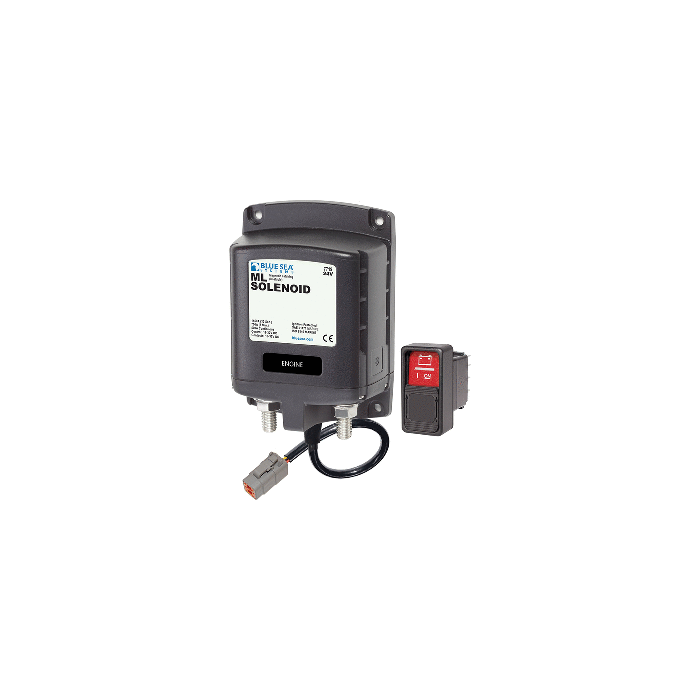

BLUE SEA 7719100 SOLENOID ML 24V WITH DEUTSCH CONNECTOR 7719100

7719100 - ML-Series Solenoid Switch - Deutsch Connector  - 24V

For applications where sustained control signals are needed to emulate a normally open relay with a lower current draw.

Features:

• Silver alloy contacts provide high reliability for switching live loads
• LED output to remotely indicate switch state
• 3/8"- 16 tin-plated copper studs for maximum conductivity and corrosion resistance
• One-piece stainless flange nuts for safe and secure connections
• Label recesses for circuit identification

Technical Specifications:

• Control Circuit Voltage - 20.2 to 32.9 V DC
• Control Circuit Connection - Deutsch DTM
• Nominal Voltage - 24V DC
• Coil Function - Auto-releasing
• Amperage Operating Current - OFF - 8mA and ON 13mA
• Mechanical Endurance - 100,000 Cycles
• Terminal Ring Diameter Clearance - 1.18" (30mm)
• Terminal Stud Length - .875" (22mm)
• Terminal Stud Size - 3/8" - 16 (M10)

In the Box:

• 7719100 Solenoid
• Contura Switch w/integrated LED
• Instruction Manual

*Sold as an Individual
