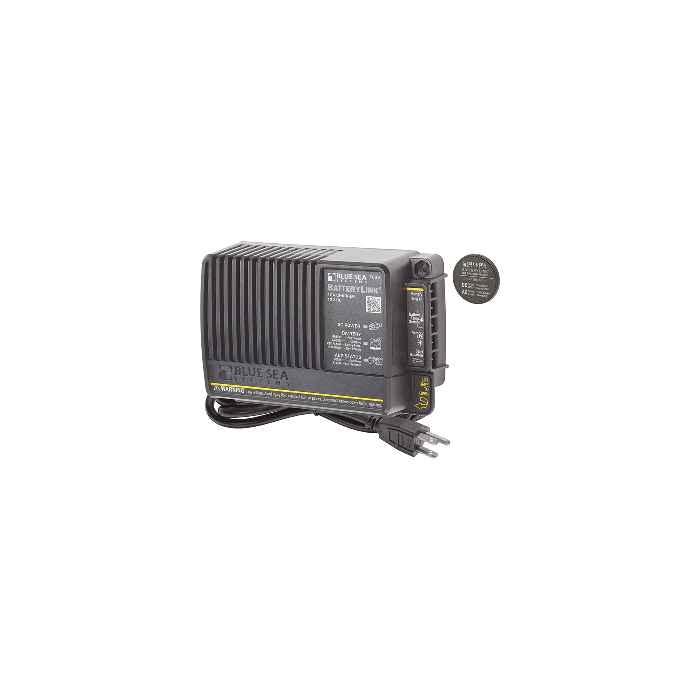

Blue Sea 7605 BatteryLink® Charger - 10Amp - 2-Bank 7605

BatteryLink® Charger - 10Amp - 2-Bank

Charge two batteries at or away from the dock with a 10A multistage battery charger and integrated 65A Automatic Charging Relay (ACR)

• AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 10 Amp battery charger

• DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 65A ACR

• Battery Temperature Compensation prolongs battery life

• Start isolation protects sensitive electronics from voltage sags and spikes

• Includes LED remote indicator for charge status at the helm

• Snap-on insulating cover

• One-piece stainless flange nuts ensure safe and secure connections

Specifications

• Total Output Current:10A


• Nominal Voltage: 12V DC

• Number of Outputs: 1 negative / 2 positive

• Terminal Stud Torque: 60 in-lb (6.78 Nm)

• Continuous Rating:65A

• Intermittent Rating:115A

• Universal AC Input Voltage: 90-265V AC

• AC Input Frequency: 50/60Hz

• Typical Float Voltage:13.5V DC

• Battery Types: AGM / Flooded / TPPL - Do not mix battery types

• Cable Size to Meet Ratings:10 AWG Negative Cable / 6 AWG Positive Cable

• Maximum Battery CCA: 850CCA

• Maximum Cable Size: 1/0 AWG (50mm)

• Operating Current: 10mA (No AC Power, ACR Open) / 60mA (No AC Power, ACR Closed)

• Recommended Battery Bank Sizes:60Ah Minimum

• Terminal Stud Size:1/4"-20 (accepts M6 ring terminal)

• Warranty: 5 Year

• Combine 30 sec: 13.5V

• Combine 2 Min: 13.0V

• Open 10 sec: 12.35V

• Open 30 sec: 12.75V
