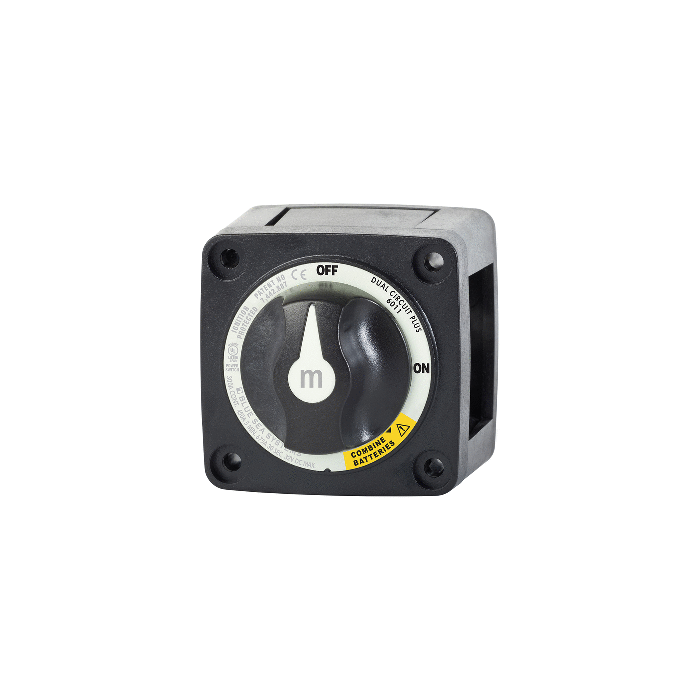

Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black 6011200
$66.13
In stock
SKU
JMS116678
Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black 6011200 is available to buy in increments of 1
Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black
m-Series Mini Dual Circuit Plus Battery Switch - Black
Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make before break contact design allows switching between battery banks without power interruption.
Switch Type: Dual Circuit Plus
Color:Black
Switch Positions:3
Battery Combine:Yes
Alternator Field Disconnect: No
Maximum Voltage:32V DC
Continuous Rating :300A
Intermittent Rating :450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs:2
Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
Cable Size to Meet Ratings:4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size:3/8"-16 (M10)
Terminal Stud Torque:120 in-lb (13.56 Nm)
Weight:0.80lb (0.36 kg)
Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make before break contact design allows switching between battery banks without power interruption.
Switch Type: Dual Circuit Plus
Color:Black
Switch Positions:3
Battery Combine:Yes
Alternator Field Disconnect: No
Maximum Voltage:32V DC
Continuous Rating :300A
Intermittent Rating :450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs:2
Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
Cable Size to Meet Ratings:4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size:3/8"-16 (M10)
Terminal Stud Torque:120 in-lb (13.56 Nm)
Weight:0.80lb (0.36 kg)
| UPC Code | 632085601126 |
|---|---|
| Manufacturer Part Number | 6011200 |
| Manufacturer | Blue Sea |
