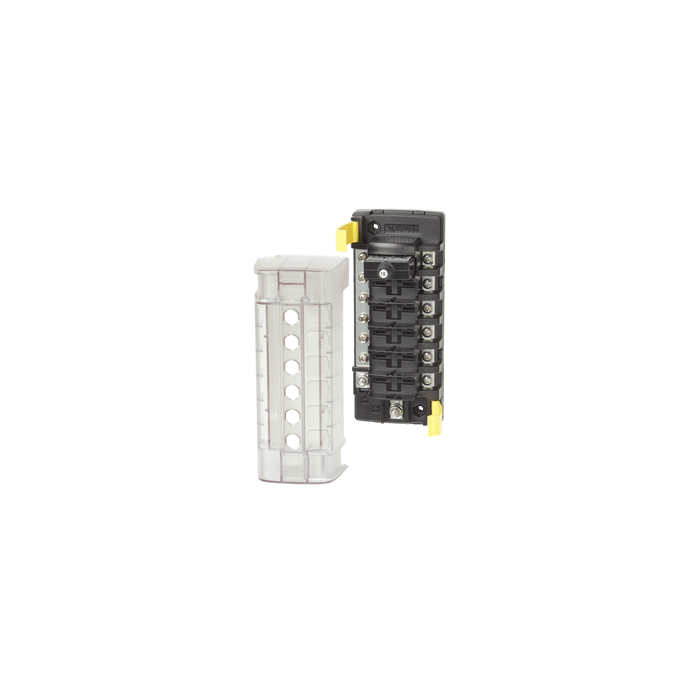

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus 5052

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Features

• Quick connect clips allow circuit breakers to snap easily into place

• Tin-plated copper busses and screw terminals

• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements

• Easy to open clip on cover

• Breakouts allow wire access in two directions

• Accepts ring terminals

• Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits:6
Maximum Amperage:100A (per block) 32A (per circuit)
Maximum Voltage:32V DC
Mounting:#8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source:Common SourceMinimum Operating Temperature:-10° C
Maximum Operating Temperature:60° C
Mounting Centers:5.63"(143 mm)
Screw Terminal Type:#8-32 Screws with Captive Star Lock Washer
Height:6.69"(169.93 mm)
Weight:0.75lb (0.34 kg)


Amperage = 100/32
