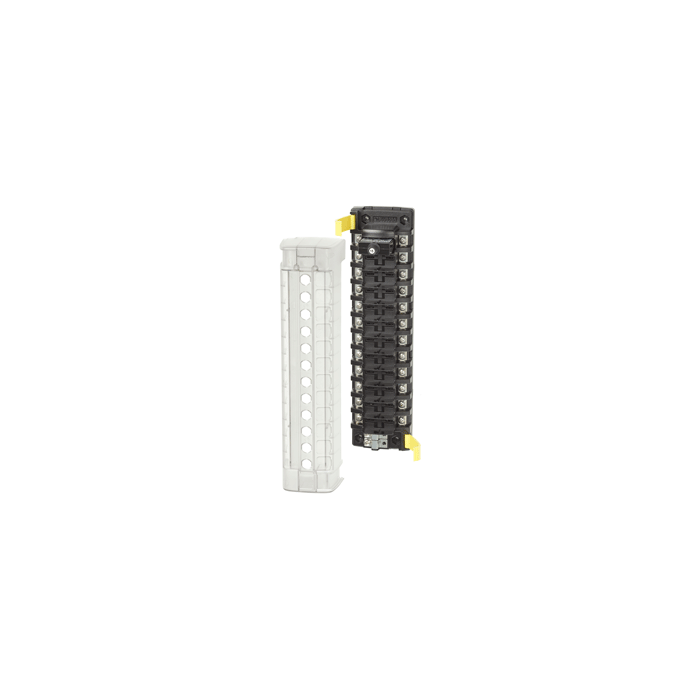

Blue Sea 5051 ST CLB Circuit Breaker Block - 12 Position 5051

Blue Sea 5051 ST CLB Circuit Breaker Block - 12 Position

ST CLB Circuit Breaker Block - 12 Position

Features

• Quick connect clips allow circuit breakers to snap easily into place

• Tin-plated copper busses and screw terminals

• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements

• Easy to open clip on cover

• Breakouts allow wire access in two directions

• Accepts ring terminals

• Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits:12
Maximum Amperage:32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage:32V DC
Mounting:#8 Screw (M4) or #8 Nut
Source:Independent SourceMinimum Operating Temperature:-10° C
Maximum Operating Temperature:60° C
Mounting Centers:10.13"(257.3 mm)
Screw Terminal Type:#8-32 Screws with Captive Star Lock Washer
Height:6.69"(169.93 mm)
Weight:1.50lb (0.68 kg)


Amperage = 32/40
