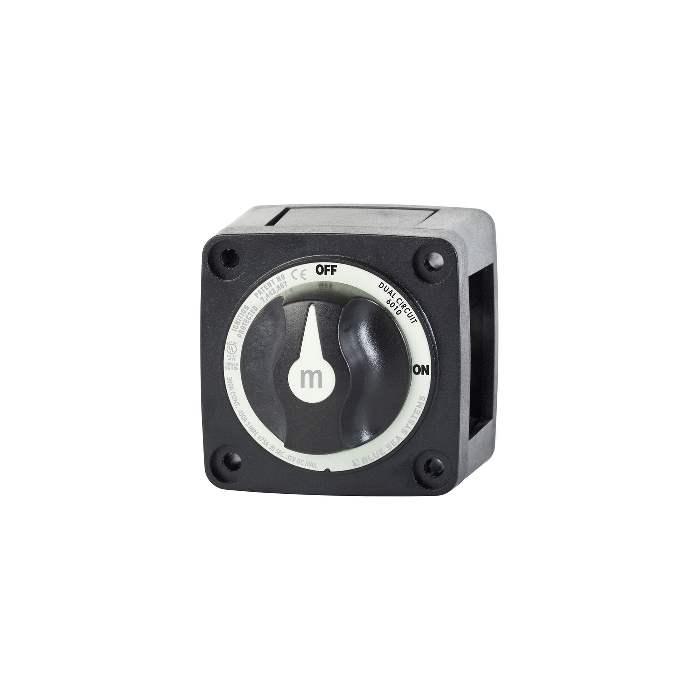

Blue Sea 3010200 Battery Switch Dual Circuit - Black 6010200
$66.13
In stock
SKU
JMS116677
Blue Sea 3010200 Battery Switch Dual Circuit - Black 6010200 is available to buy in increments of 1
Blue Sea 3010200 Battery Switch Dual Circuit - Black
m-Series Mini Dual Circuit Battery Switch - Black
Simultaneously switches two isolated battery banks.
Switch Type: Dual Circuit
Color:Black
Switch Positions:2
Battery Combine:No
Alternator Field Disconnect: No
Maximum Voltage:32V DC
Continuous Rating :300A
Intermittent Rating :450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs:2
Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
Cable Size to Meet Ratings:4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size:3/8"-16 (M10)
Terminal Stud Torque:120 in-lb (13.56 Nm)
Weight:0.80lb (0.36 kg)
Simultaneously switches two isolated battery banks.
Switch Type: Dual Circuit
Color:Black
Switch Positions:2
Battery Combine:No
Alternator Field Disconnect: No
Maximum Voltage:32V DC
Continuous Rating :300A
Intermittent Rating :450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs:2
Cable Clearance For 4/0 AWG Cables:1.12in (28.45 mm)
Cable Size to Meet Ratings:4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size:3/8"-16 (M10)
Terminal Stud Torque:120 in-lb (13.56 Nm)
Weight:0.80lb (0.36 kg)
| UPC Code | 632085601027 |
|---|---|
| Manufacturer Part Number | 6010200 |
| Manufacturer | Blue Sea |
