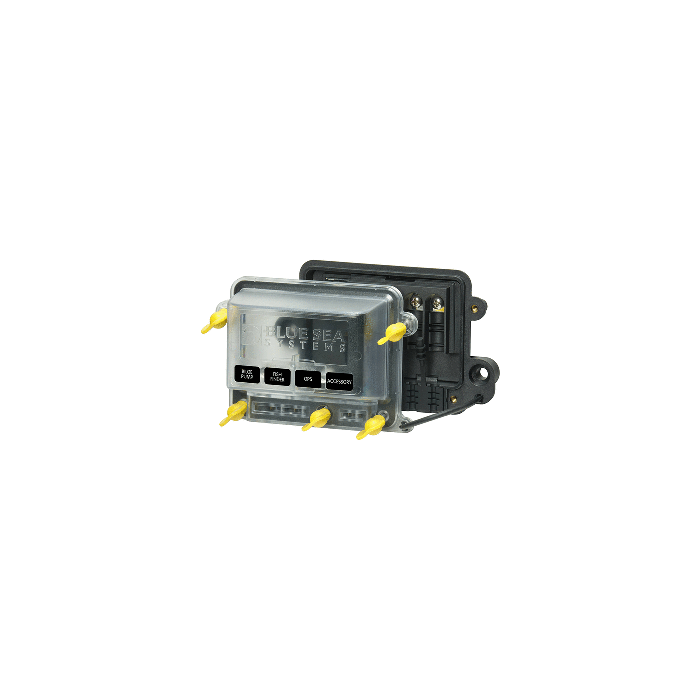

BLUE SEA 2356100 BUSBAR 100A WITH MANUAL COVER 2356100

2356100 - Water Resistant 100A Busbar with Cover

Water-resistant bussing for harsh environments.  Built with wing screws for toolless access.

Features:

• Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain a water-resistant rating if less than 4 wires are used
  • Nests with other water-resistant 100A common busbars and ST-Blade water resistant fuse block for space-saving wiring
  • Ideal for positive distribution and for the collection of negative or AC ground circuits
  • Meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Includes four (4) write-on circuit labels
  • Small format standard and custom labels are available
  • Wing-screws designed for tool-free installation of cover to meet ABYC compliance

Technical Specifications:

• Cover - yes
• Maximum Voltage - 300V AC - 48V DC
• Terminal Stud - 1 x #10-32
• Continuous Rating - 100A AC or DC
• Bus Material - Tin-plated Copper
• Mounting Holes - Accepts 1/4" (6mm) screws
• Terminal Screws - 4 x # 8-32
• Wire Size - Input - (1) 8 AWG to 4 AWG
• Wire Size - Load - (4) 16 AWG to 10 AWG

In the Box:

• 2356100 Busbar
• Instruction Manual

*Sold as an Individual
