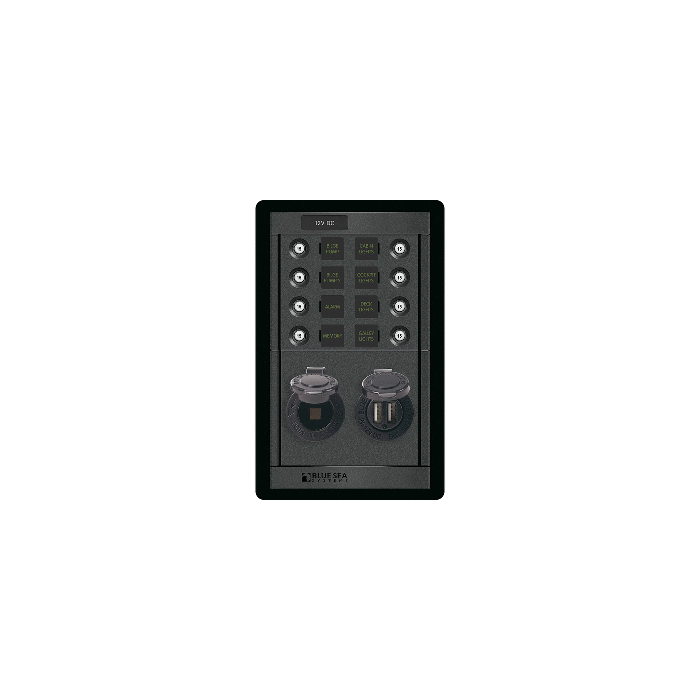

BLUE SEA 1498 360 PANEL 12V 8 POS CLB DUAL USB 1498

1498 - 360 Panel - 8 Position 12V Panel with Dual USB & 12V Socket

Part of the Blue Sea Systems Battery Management Panels.  This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.

DC sockets and USB charging are integrated into a popular sized circuit protection panel.

Features:

• ON-indicating LEDs
• Backlit label positions

Technical Specifications:

• Positions - Eight (8)
• Nominal Voltage - 12V DC
• Maximum Amperage - 90A
• Circuit Breaker Type - 8 Push Button (15A)
• USB Output - 12/24V Dual USB
• Socket Output - 12V Dash socket
• Dimensions - (H x W x D) - 7.75" x 4.88" x 3.5" (197 x 124 x 89mm)

In the Box:

• 1498 Panel
• Instruction Manual

*Sold as an Individual
