BLUE SEA 1497 360 PANEL 12V 8 POS M2 SOC DUAL USB 1497

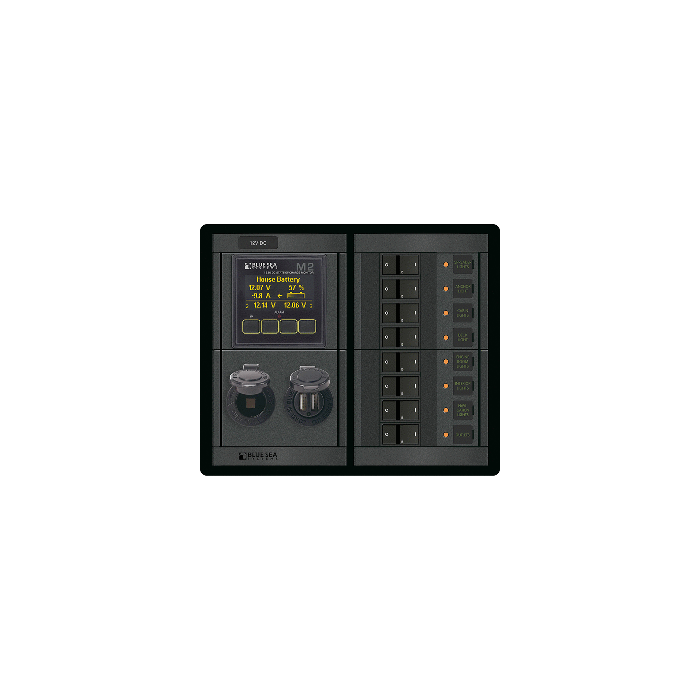

1497 - 360 Panel - 8 Position 12V Flat Rocker M2 Multimeter with SOC & Dual USB/12V Socket

Part of the Blue Sea Systems Battery Management Panels.  This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.

DC sockets and USB charging are integrated into a popular sized circuit protection panel.

Features:

• ON-indicating LEDs
• Backlit label positions

Technical Specifications:

• Positions - Eight (8)
• Meter - M2 Multimeter w/SOC
• Nominal Voltage - 12V DC
• Maximum Amperage - 100A
• Circuit Breaker Type - 8 A-Series (15A)
• USB Output - 12/24V Dual USB
• Socket Output - 12V Dash socket
• Dimensions - (H x W x D) - 7.75" x 9.25" x 4" (197 x 235 x 102mm)

In the Box:

• 1497 Panel
• Instruction Manual

*Sold as an Individual
