BLUE SEA 1496 360 PANEL 12V 12 POS FLAT ROCKER M2 SOC 1496

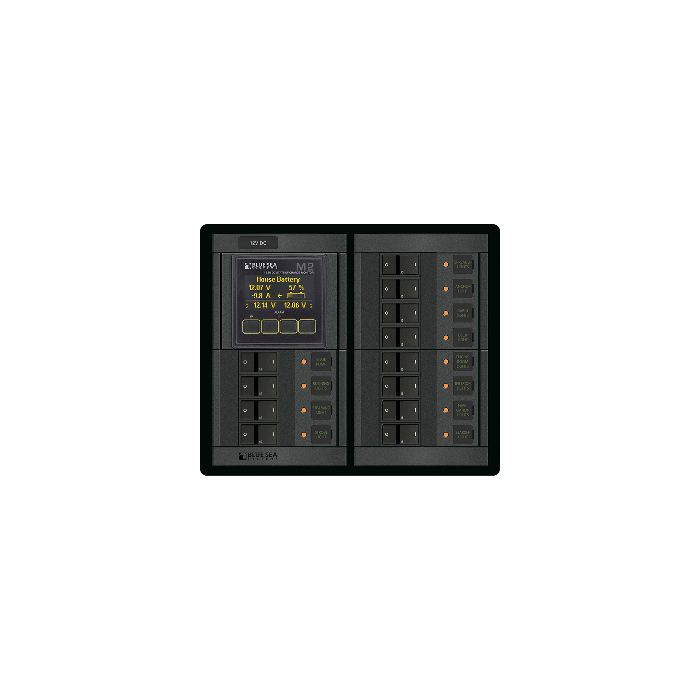

1496 - 360 Panel - 12 Position 12V Flat Rocker M2 Multimeter with SOC

Part of the Blue Sea Systems Battery Management Panels. This DC Branch Circuit Breaker panel will distribute current from a high amperage source to lower amperage circuits.

Features:

• ON-indicating LEDs
  • Backlit label positions

Technical Specifications:

• Positions - 12
• Meter - M2 Multimeter w/SOC
• Nominal Voltage - 12/24V DC
• Maximum Amperage - 100A
• Circuit Breaker Type - 12 A-Series (15A)
• Dimensions - (H x W x D) - 7.75" x  9.25"" x 4" (197 x 235 x 102mm)

In the Box:

• 1496 Panel
• Instruction Manual

*Sold as an Individual
