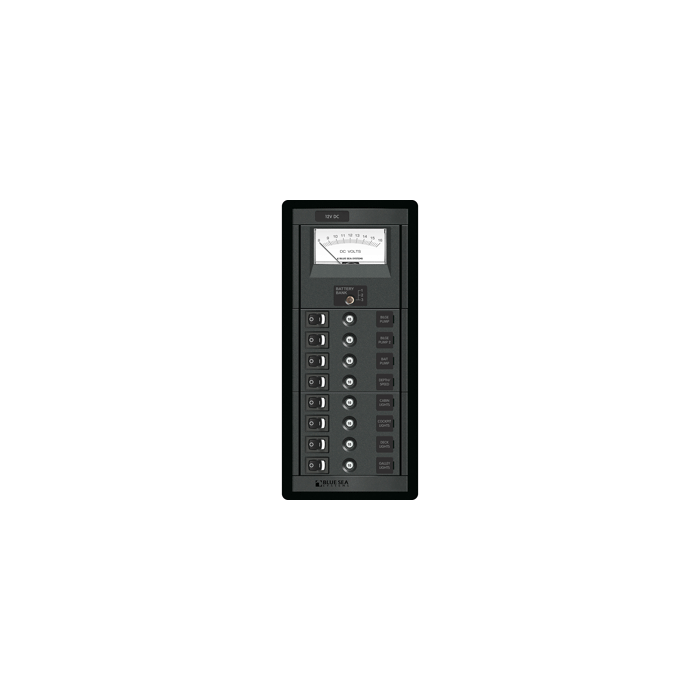

Blue Sea 1463 8 Position Switch CLB + Meter Vertical 1463

8 Position Switch CLB + Meter Vertical

Features:

• Available with voltmeters and ammeters

• Panels with meters include a toggle switch to monitor voltage on up to three battery banks

• Includes 4205-Square Format Label Set

Specifications:

• Positions:8

• Nominal Voltage:12V DC

• Maximum Amperage*:80A per bus

• Height:10.75" (273.05mm)

• Width:4.88" (123.95mm)

• Depth:3.50" (88.9mm)

• Weight:3.66lb (1.66kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(8) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
