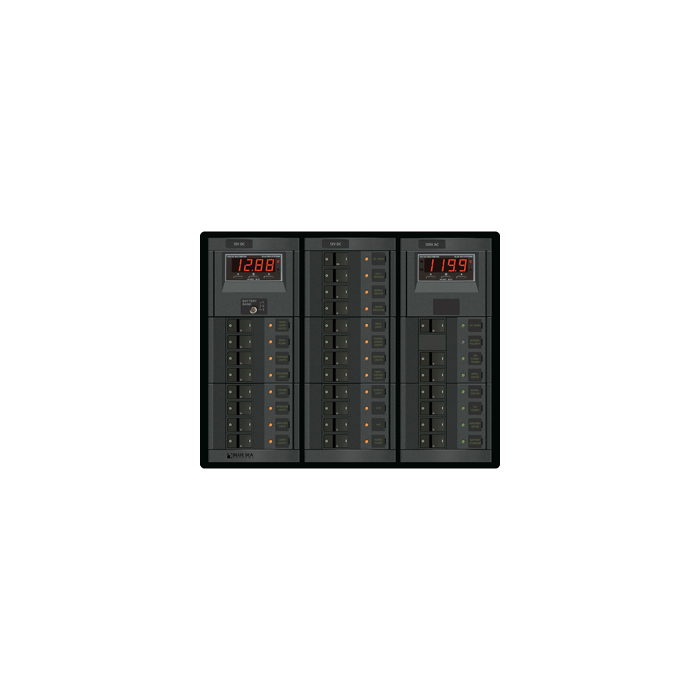

Blue Sea 1218 12V DC Main + 19 Positions / 120V AC Main + 6 Positions 1218

12 Volt DC Main + 19 Positions/120 Volt AC Main + 6 Positions

Features:

• 360 AC Panels may be equipped with main breakers up to 100A per pole to suit the application

• AC and DC panel amperage determined by AC Main and DC Main circuit breakers

• Modular manufacturing design reduces manufacturing time

• Interchangeable modular design eliminates custom engineering and metal fabrication

• Flexible modifications

• Flexible panel orientation (panels without meters)

Specifications:

• Positions:6-AC / 19-DC

• Nominal Voltage:120V AC / 12V DC

• Height:10.75" (273.05mm)

• Width:13.63" (346.2mm)

• Depth:4.00" (101.6mm)

• Weight:12.80lb (5.81kg)

Includes:
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (AC Branch)
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (AC Main)
(1) - 8247 - AC Digital Multi-Function Meter with Alarm (AC Meter)
(19) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (DC Branch)
(1) - 7549 - C-Series Flat Rocker Circuit Breaker - Single Pole 100A (DC Main)
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (DC Meter)
