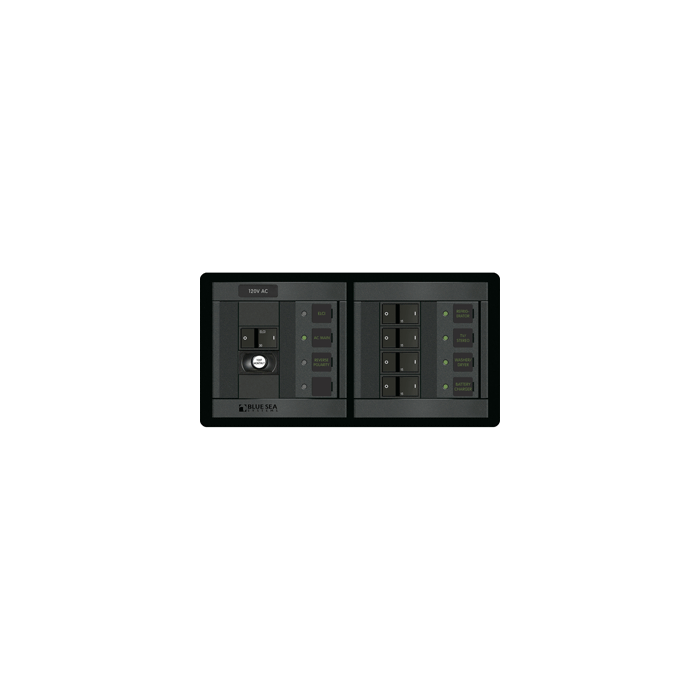

Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal 1193
$712.67
In stock
SKU
JMS115886
Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal 1193 is available to buy in increments of 1
Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal
ELCI Main 30A Double Pole + 4 Positions Horizontal
Features:
Specifications:
Includes:
(4) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Features:
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Four 15A AC Branch Flat Rocker Circuit Breaker
- Red " Reverse Polarity" LED
- Includes 4206 AC Panel Basic Square Format Label Set
- All circuit label positions are backlit
- "ON" indicating LEDs
Specifications:
- Positions:1
- Nominal Voltage:120V AC
- Height:4.75" (120.65mm)
- Width:4.88" (123.95mm)
- Depth:3.99" (101.35mm)
- Weight:1.00lb (0.45kg)
Includes:
(4) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
| UPC Code | 632085011932 |
|---|---|
| Manufacturer Part Number | 1193 |
| Manufacturer | BLUE SEA SYSTEMS |
