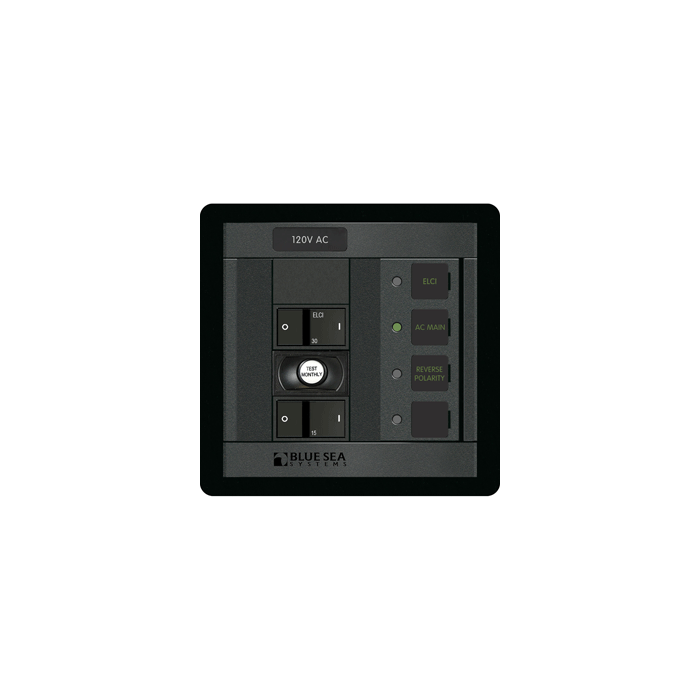

Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position 1190
$490.45
In stock
SKU
JMS115885
Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position 1190 is available to buy in increments of 1
Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position
ELCI Main 30A Double Pole + 1 Position
Features:
Specifications:
Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position
Features:
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- One 15A AC Branch Flat Rocker Circuit Breaker
- Red " Reverse Polarity" LED
- Includes 4206 AC Panel Basic Square Format Label Set
- All circuit label positions are backlit
- "ON" indicating LEDs
Specifications:
- Positions:1
- Nominal Voltage:120V AC
- Backlit Label*: Green LED
- Height:4.75" (120.65mm)
- Width:4.88" (123.95mm)
- Depth:3.99" (101.35mm)
- Weight:1.00lb (0.45kg)
Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position
| UPC Code | 632085011901 |
|---|---|
| Manufacturer Part Number | 1190 |
| Manufacturer | BLUE SEA SYSTEMS |
