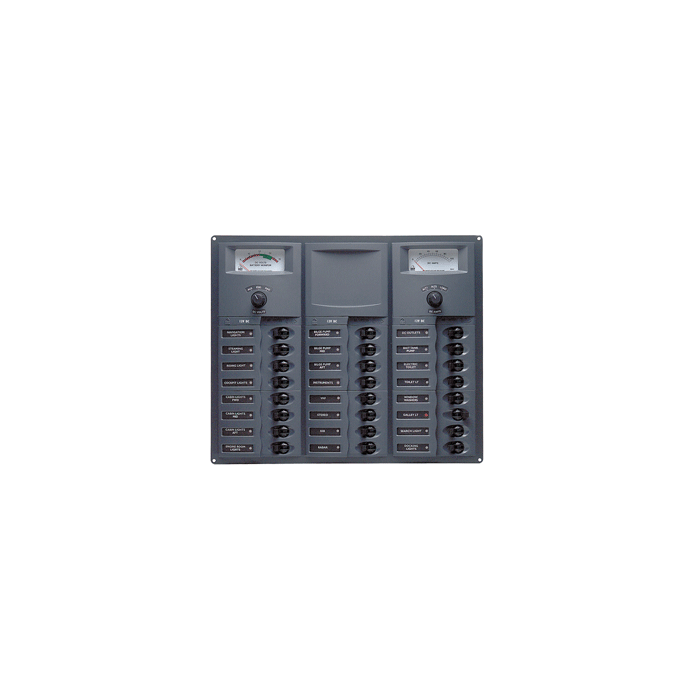

BEP Panel 24SP DC12V Analog 905-AM
$1,355.24
In stock
SKU
JMS115448
BEP Panel 24SP DC12V Analog 905-AM is available to buy in increments of 1
BEP Panel 24SP DC12V Analog
Panel 24SP DC12V Analog
DC circuit breaker panel with analog monitoring
BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.
Features
Specifications
Total Positions: 24 Loads
Circuit Breakers: 5X 5A, 8X 10A, 8X 15A, 1X 20A, 1X 25A, 1X 30
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 11.6" X 13.9" X 2.5"
Neg Bus: 12 Way
DC circuit breaker panel with analog monitoring
BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.
Features
- Marine Grade powder coated aluminium
- Airpax circuit breaker
- Stylish Contour Design fascia
- Green LED backlit labels
- Red LED indicates systems on
- Panels meet ABYC standards
Specifications
Total Positions: 24 Loads
Circuit Breakers: 5X 5A, 8X 10A, 8X 15A, 1X 20A, 1X 25A, 1X 30
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 11.6" X 13.9" X 2.5"
Neg Bus: 12 Way
| UPC Code | 843687003953 |
|---|---|
| Manufacturer Part Number | 905-AM |
| Manufacturer | BEP Marine |
