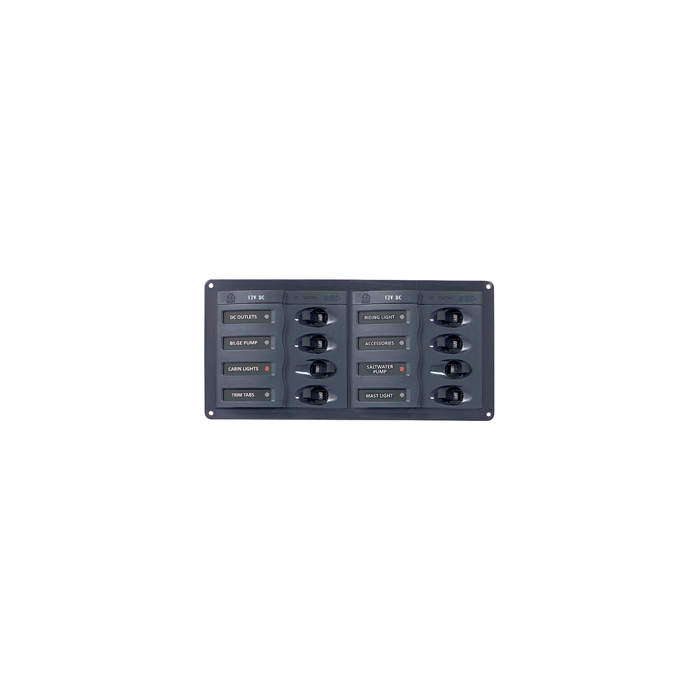

BEP DC PANEL - 8-WAY - HORIZONTAL 901H

DC Panel - 8-Way - Horizontal

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 8 Loads
Circuit Breakers: 2X 5A, 2X 10A, 3X 15A, 1X 20A
Nominal Voltage: 12V
Maximum Amperage: 160A
Dimensions: 4.5" X 9.75" X 2.5"
Neg Bus: 6 Way
