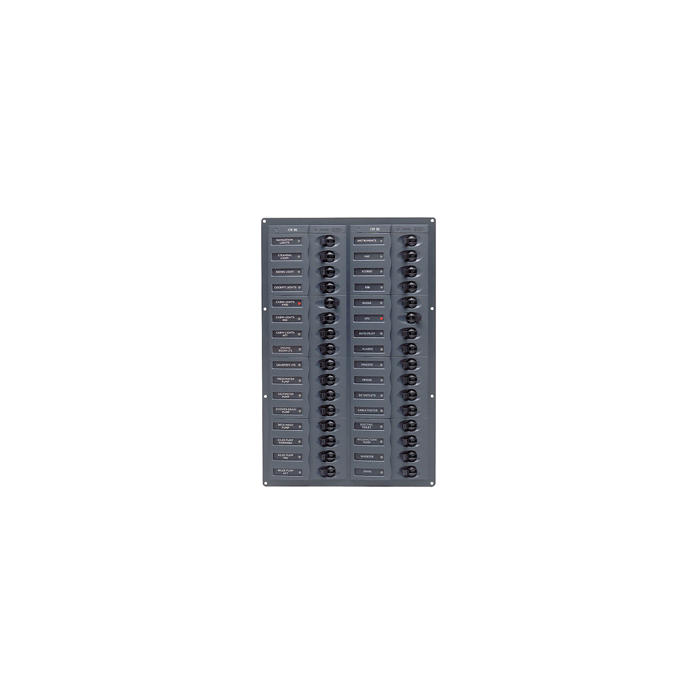

BEP DC Panel - 32-Way - No Meter - Vertical 906NMV

DC Panel - 32-Way - No Meter - Vertical

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 32 Loads
Circuit Breakers: 7X 5A, 11X 10A, 11X 15A, 1X 20A, 1X 25A, 1X 30A
Nominal Voltage: 12V
Maximum Amperage: 160A per bus
Dimensions: 14.6" X 9.75" X 2.5"
Neg Bus: 24 Way
