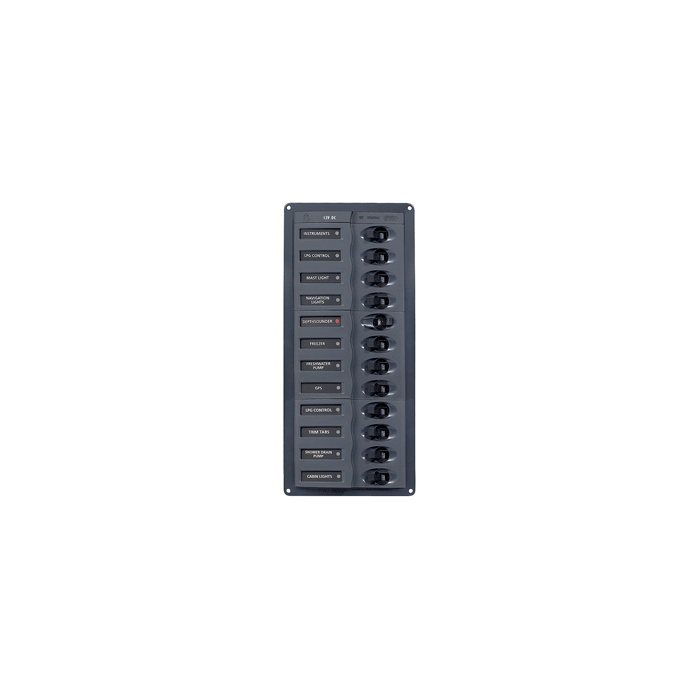

BEP DC Panel - 12-Way - No Meter - Vertical 902NMV
$597.31
In stock
SKU
JMS115443
BEP DC Panel - 12-Way - No Meter - Vertical 902NMV is available to buy in increments of 1
BEP DC Panel - 12-Way - No Meter - Vertical
DC Panel - 12-Way - No Meter - Vertical
BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.
Features
Specifications
Total Positions: 12 Loads
Circuit Breakers: 3X 5A, 4X 10A, 4X 15A, 1X 25A
Nominal Voltage: 12V
Maximum Amperage: 160A
Dimensions: 11.25" X 5" X 2.5"
Neg Bus: 6 Way
BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.
Features
- Marine Grade powder coated aluminium
- Airpax circuit breaker
- Stylish Contour Design fascia
- Green LED backlit labels
- Red LED indicates systems on
- Panels meet ABYC standards
Specifications
Total Positions: 12 Loads
Circuit Breakers: 3X 5A, 4X 10A, 4X 15A, 1X 25A
Nominal Voltage: 12V
Maximum Amperage: 160A
Dimensions: 11.25" X 5" X 2.5"
Neg Bus: 6 Way
| UPC Code | 870216002064 |
|---|---|
| Manufacturer Part Number | 902NMV |
| Manufacturer | BEP Marine |
