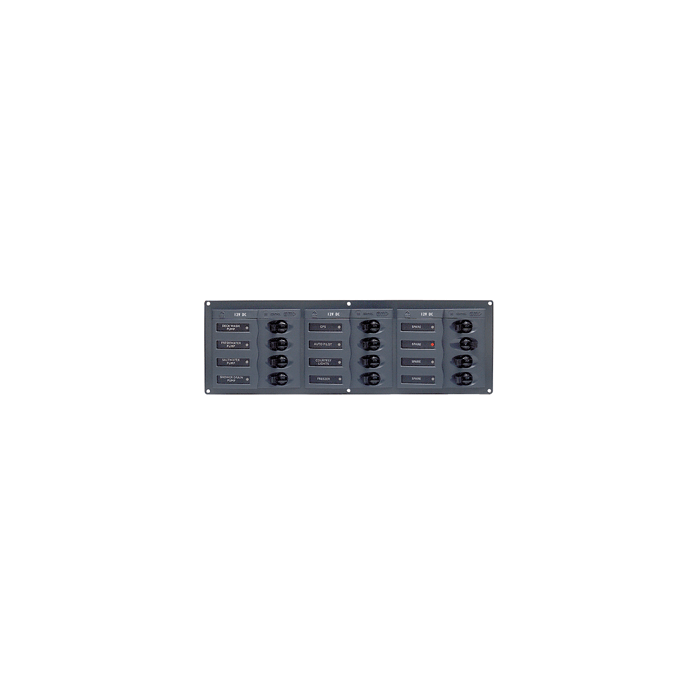

BEP DC Panel - 12-Way - No Meter - Horizontal 902NMH

DC Panel - 12-Way - No Meter - Horizontal

BEP Marine uses the highest quality materials in its range of Control
Panels, from the marine grade aluminium base plates to the Airpax magnetic
hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 12 Loads
Circuit Breakers: 3X 5A, 4X 10A, 4X 15A, 1X 25A
Nominal Voltage: 12V
Maximum Amperage: 100A
Dimensions: 4.5" X 13.9" X 2.5"
Neg Bus: 6 Way
