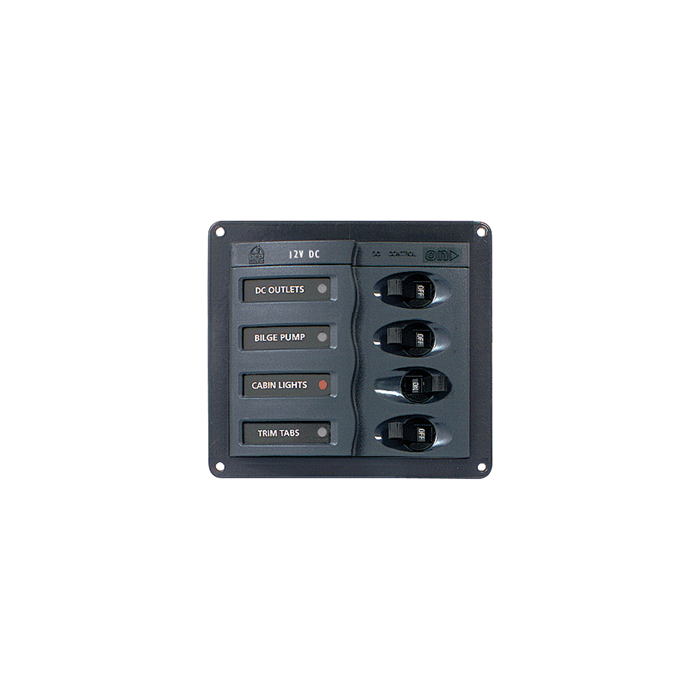

BEP CIRCUIT BREAKER PANEL - 4- WAY 900-DC

Circuit Breaker Panel - 4-Way

BEP Marine uses the highest quality materials in its range of Control Panels, from the marine grade aluminium base plates to the Airpax magnetic hydraulic circuit breakers.

Features

• Marine Grade powder coated aluminium

• Airpax circuit breaker

• Stylish Contour Design fascia

• Green LED backlit labels

• Red LED indicates systems on

• Panels meet ABYC standards

Specifications

Total Positions: 4 Loads
Circuit Breakers: 1X 5A, 2X 10A, 1X 15A
Nominal Voltage: 12V
Maximum Amperage: 80A
Dimensions: 4.5" X 5" X 2.5"
Neg Bus: 6 Way
