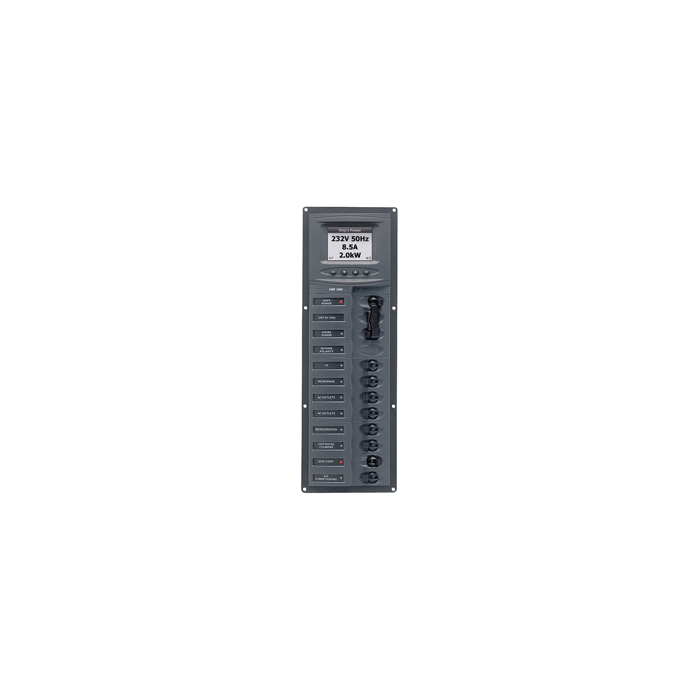

BEP AC Circuit Breaker Panel w/Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical 900-AC2V-ACSM
$1,680.79
In stock
SKU
JMS115428
BEP AC Circuit Breaker Panel w/Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical 900-AC2V-ACSM is available to buy in increments of 1
BEP AC Circuit Breaker Panel w/Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical
AC Circuit Breaker Panel with Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical
Features
Specifications
Features
- Supplied with tranducer
- Reverse polarity indicator
- Double pole mains input CBs with side lockout
- Digital meter shows volts, amps and frequency
- LED wired to indicate live panel with mains breaker either on or off
- AC source selector ensures no cross over between AC inputs (ship or
shore power)
Specifications
- Total Positions: 8 Loads + 2 Inputs
- Circuit Breakers: 1x 5A, 3x 10A, 3x 15A, 1x 20A + 1x 20A, 1x 30A
- Nominal Voltage: 230V AC
- Maximum Amperage: 30A
- Dimensions: 15" X 5" X 2.5"
- Neg Bus: IS-6MM-2
| UPC Code | 843687004271 |
|---|---|
| Manufacturer Part Number | 900-AC2V-ACSM |
| Manufacturer | BEP Marine |
