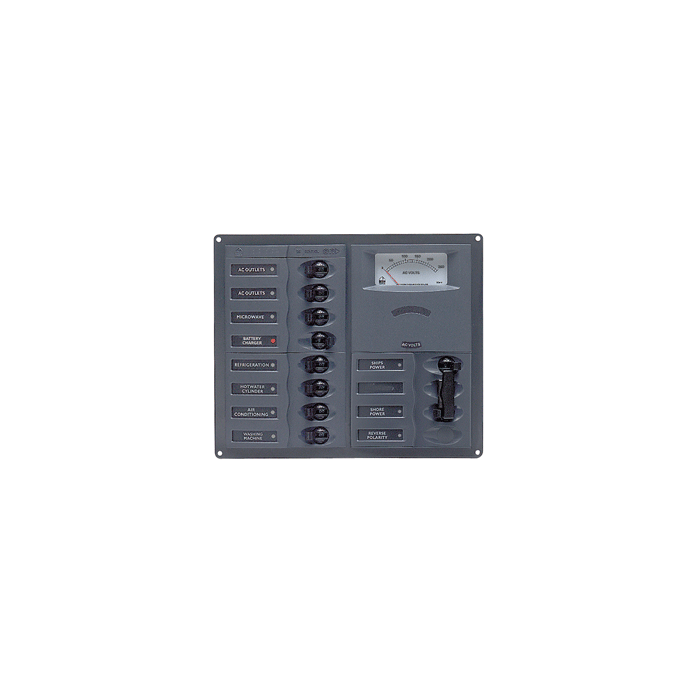

BEP AC Circuit Breaker Panel w/Analog Meters, 8SP 2DP AC120V Stainless Steel Vertical 900-AC2H-AM-110
$955.70
In stock
SKU
JMS115427
BEP AC Circuit Breaker Panel w/Analog Meters, 8SP 2DP AC120V Stainless Steel Vertical 900-AC2H-AM-110 is available to buy in increments of 1
BEP AC Circuit Breaker Panel w/Analog Meters, 8SP 2DP AC120V Stainless Steel Vertical
AC Circuit Breaker Panel with Analog Meters, 8SP 2DP AC120V Stainless Steel Vertical
Features
Specifications
Features
- Supplied with tranducer
- Reverse polarity indicator
- Double pole mains input CBs with side lockout
- Analog meter
- LED wired to indicate live panel with mains breaker either on or off
- AC source selector ensures no cross over between AC inputs (ship or
shore power)
Specifications
- Total Positions: 8 Loads + 2 Inputs
- Circuit Breakers: 2x 10A, 3x 15A, 2x 20A, 1x 25A + 1x 30A, 1x 50A
- Nominal Voltage: 110V AC
- Maximum Amperage: 50A
- Dimensions: 7.9" X 9.75" X 2.5"
- Neg Bus: IS-6MM-2
| UPC Code | 843687004486 |
|---|---|
| Manufacturer Part Number | 900-AC2H-AM-110 |
| Manufacturer | BEP Marine |
