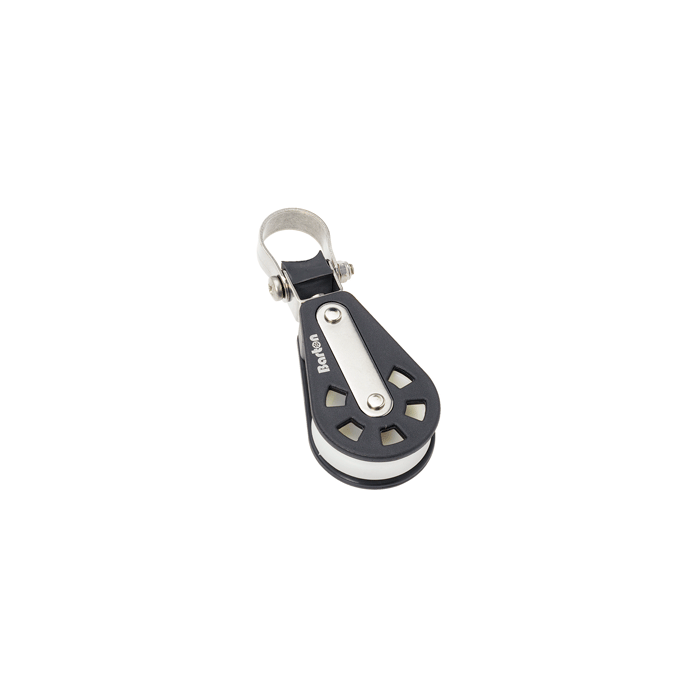

Barton Marine 03190 - Size 3 - Single - Stanchion Lead Block 3190

Series 3 45mm Block - Stanchion Lead

Stanchion lead
Designed for use on 25mm Ø tubes, with a swivelling action with up-down movement allowing for a fair lead on control lines.

A strong, lightweight range of blocks for use on dayboats and cruising yachts. Ideal for mainsheets, vang tackles, lead blocks or wherever a powerful and compact purchase tackle is required.
A comprehensive range of cam cleat, fiddle, and fiddle & cam cleat versions are available

Plain bearing blocks
Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Length:120mm(4.72")
Sheave Size:
Single: 45mm x 14mm (1-¾" x ³⁵⁄₆₄")
Fiddle: 30/58mm x 12mm (1-³⁄₁₆" /2-½"; x ³⁵⁄₆₄")
SWL: 385kg (848lbs)
Max Rope Diameter: 10mm (⅜")
Break Load:740kg (1698lbs)
