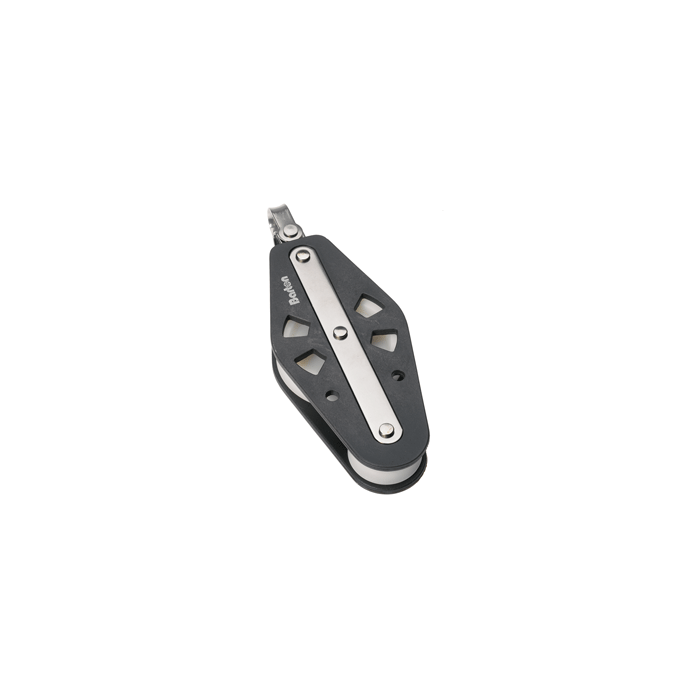

Barton Marine 03420 - Size 3 - Fiddle - Reverse Shackle Block 3420

Series 3 45mm Block - Fiddle - Reverse Shackle

Fiddle - Reverse Shackle
Removable shackle that can be set in-line or at 90° to the sheave.

A strong, lightweight range of blocks for use on dayboats and cruising yachts. Ideal for mainsheets, vang tackles, lead blocks or wherever a powerful and compact purchase tackle is required.
A comprehensive range of cam cleat, fiddle, and fiddle & cam cleat versions are available

Plain bearing blocks
Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Length:162mm(6.37")
Sheave Size:
Single 45mm x 14mm (1-¾" x ³⁵⁄₆₄")
Fiddle: 30/58mm x 12mm (1-³⁄₁₆" /2-½"; x ³⁵⁄₆₄")
SWL: 385kg (848lbs)
Max Rope Diameter: 10mm (⅜")
Break Load:740kg (1698lbs)
