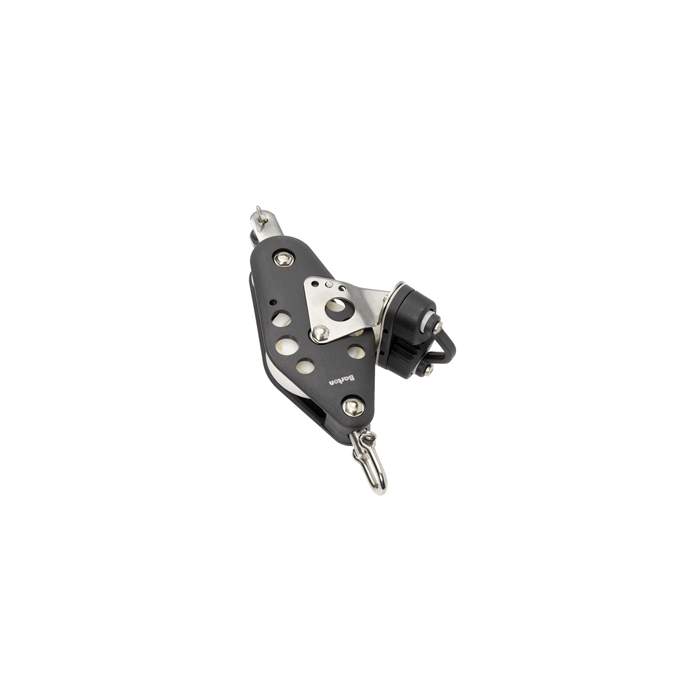

Barton Marine 05631 - Size 5 - Fiddle - Swivel, Cam & Becket Block

Barton Marine Series 5 54mm Crusier Blocks - Fiddle - Swivel, Becket & Cam Cleat Block

Swivel
Fully swivelling head with removable shackle.
Becket
A clevis forming part of one end of a sheave
Cam cleat blocks
Fitted with Kevlar "K" cams (unless otherwise stated). Cam arms are fully adjustable by moving the locking clevis pin to achieve the correct cleating angle. Used in conjunction with the relevant top block, this range of blocks is particularly useful for mainsheet, vang tackles or downhauls on dinghies, dayboats or light cruising yachts

This range of high load cruiser blocks are of rugged construction, featuring high quality injection moulded side plates with all loadcarrying components from 316 grade stainless steel. Side plates are through-bolted and riveted for added strength and security.
This good looking and versatile range is designed for use on larger cruising and racing yachts. All are designed for ease of use with our ball bearing mainsheet traveller systems.
A comprehensive range of cam cleat, fiddle, and fiddle and cam cleat versions are available

Plain bearing blocks
Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Length:209mm (8.23")
Sheave Size:
Single: 54mm x 17mm (2-⅛" x ⅝")
Fiddle: 38/64mm x 17mm (1-½ / 2-½" x ⅝")
SWL: 750kg (1650lbs)
Max Rope Diameter: 12mm (⁷⁄₁₆")
Break Load: 1500kg (3300lbs)



Category: Boat Outfitting | Sailing

Manufacturer Part Number: 05 631
