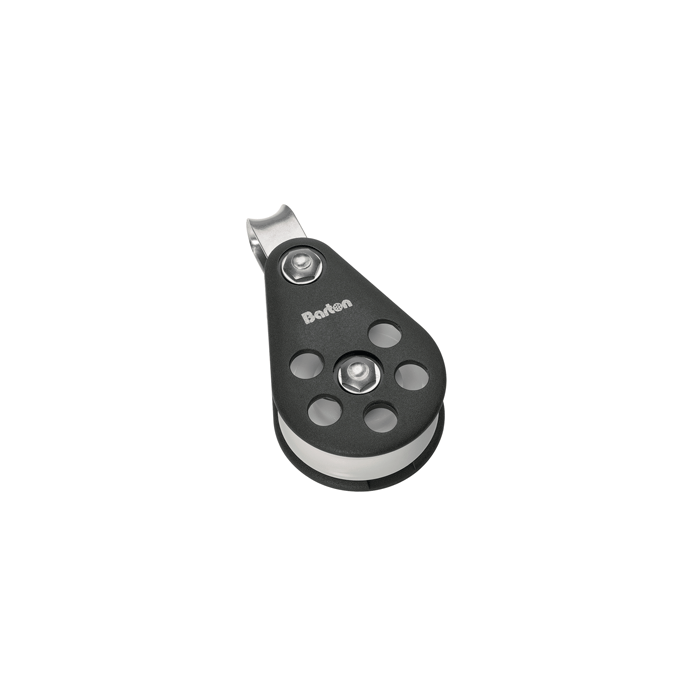

Barton Marine 05110 - Size 5 - Single - Fixed Eye Block

Barton Marine Series 5 54mm Crusier Blocks - Single - Fixed Eye

Fixed Eye
With a plain attachment eye.

This range of high load cruiser blocks are of rugged construction, featuring high quality injection moulded side plates with all loadcarrying components from 316 grade stainless steel. Side plates are through-bolted and riveted for added strength and security.
This good looking and versatile range is designed for use on larger cruising and racing yachts. All are designed for ease of use with our ball bearing mainsheet traveller systems.
A comprehensive range of cam cleat, fiddle, and fiddle and cam cleat versions are available

Plain bearing blocks
Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Length:107mm (4.21")
Sheave Size:
Single: 54mm x 17mm (2-⅛" x ⅝")
Fiddle: 38/64mm x 17mm (1-½ / 2-½" x ⅝")
SWL: 750kg (1650lbs)
Max Rope Diameter: 12mm (⁷⁄₁₆")
Break Load: 1500kg (3300lbs)



Category: Boat Outfitting | Sailing

Manufacturer Part Number: 05 110
