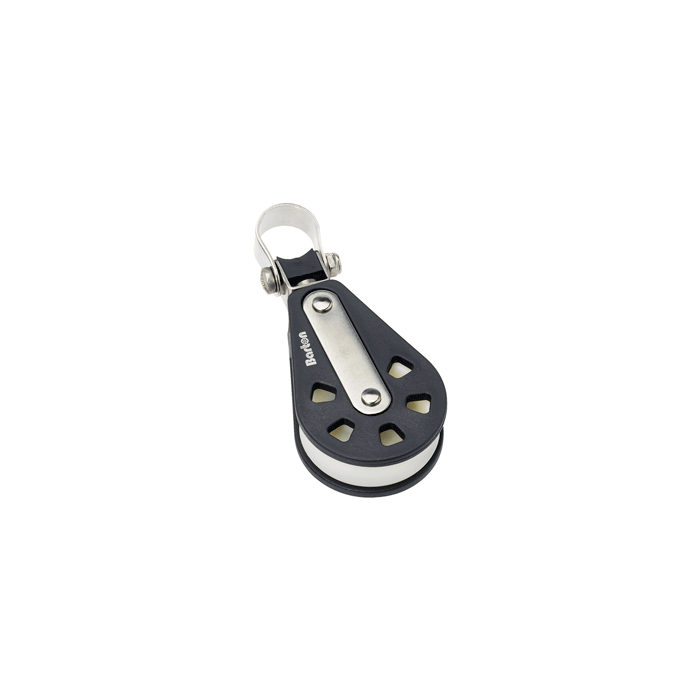

Barton Marine 04190 - Size 4 - Single - Stanchion Lead Block 04 190

Series 4 58mm Block - Single - Stanchion Lead

Stanchion lead
Designed for use on 25mm Ø tubes, with a swivelling action with up-down movement allowing for a fair lead on control lines.

A strong, lightweight range of blocks for use on dayboats and cruising yachts. Ideal for mainsheets, vang tackles, lead blocks or wherever a powerful and compact purchase tackle is required.
A comprehensive range of cam cleat, fiddle, and fiddle & cam cleat versions are available

Plain bearing blocks
Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Length:140mm(5.51")
Sheave Size:
Single: 58mm x 17mm (2-¼;" x ⅝")
Fiddle: 32/58mm x 17mm (1-¼" / 2-¼"; x ⅝")
SWL: 630kg (1385lbs)
Max Rope Diameter: 12mm (⁷⁄₁₆")
Break Load:1260kg (2770lbs)
