Barton Marine 02160 - Size 2 - Single - Cheek Block

Barton Marine Series 2 35mm Blocks - Cheek Block

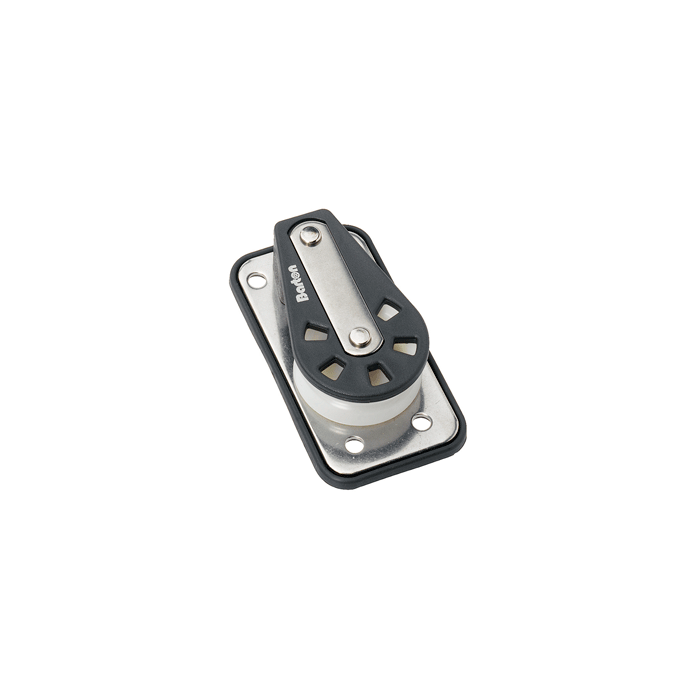

Cheek Block
With a plastic backing plate standard to allow snug attachment to spars etc
Base size 79mm x 43mm.
Fastenings 5mm.

A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger boats.
A comprehensive range of multiple sheave options, together with fiddles and cam cleat blocks, allow powerful, lightweight tackles to be achieved

Plain bearing blocks
Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Length:80mm(3.14")
Sheave Size:
Single: 35mm x 12mm (1-⅜" x ¹⁵⁄₃₂")
Fiddle: 30/45mm x 12mm (1-³⁄₁₆" /1-¾" x ¹⁵⁄₃₂")
SWL: 370kg (815lbs)
Max Rope Diameter: 8mm (⁵⁄₁₆")
Break Load:740kg (1630lbs)



Category: Boat Outfitting | Sailing

Manufacturer Part Number: 02 160
