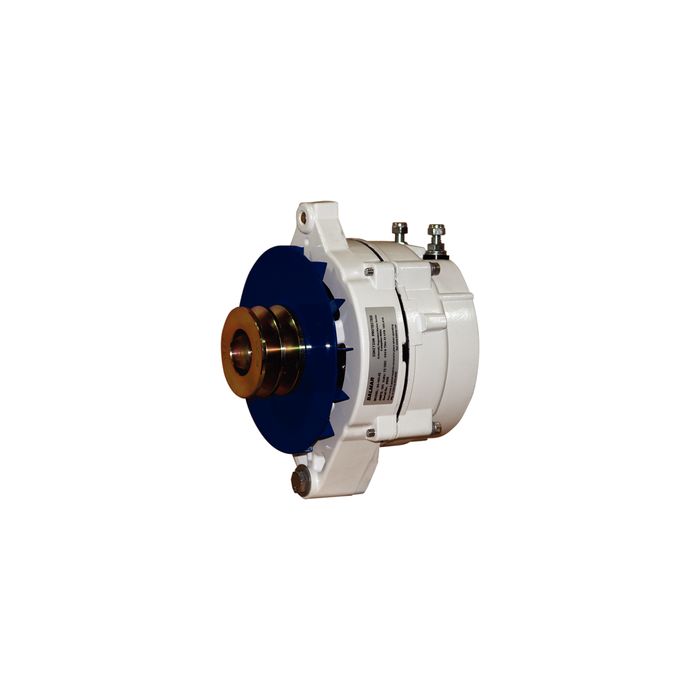

Balmer 94 Series Alternator

Balmer 94 Series Alternator

Fits Cummins, Delco, Westerbeke, Off-engine mount Delco-style, single foot alternators feature oversized components for superior cooling and longer life. Rugged cast aluminum cases. Extra-heavy custom windings deliver excellent low rpm output response. A proven workhorse in systems supplying larger battery banks and house electrical loads. Alternator dimensions on rear cover of product guide. Limited one year warranty. 94 Series are typically used on larger diesel engines requiring a J-180 style mounting foot. These alternators can also be used with the 5276 off engine mounting bracket.
Series Specifications:
Cooling: Bi-Directional external fan
Outputs: AC (yach), positive output, isolated ground
Regulation: External field connection
Maximum RPM: 6,500
Pulley: Anodized steel dual sheave

SKU	Minimum Belt Width	Mount	Volts	Amps
BLM-9416512IG	.50" (2)	2" Single Foot	12	165
BLM-9414024IG	.50" (2)	2" Single Foot	24	140
