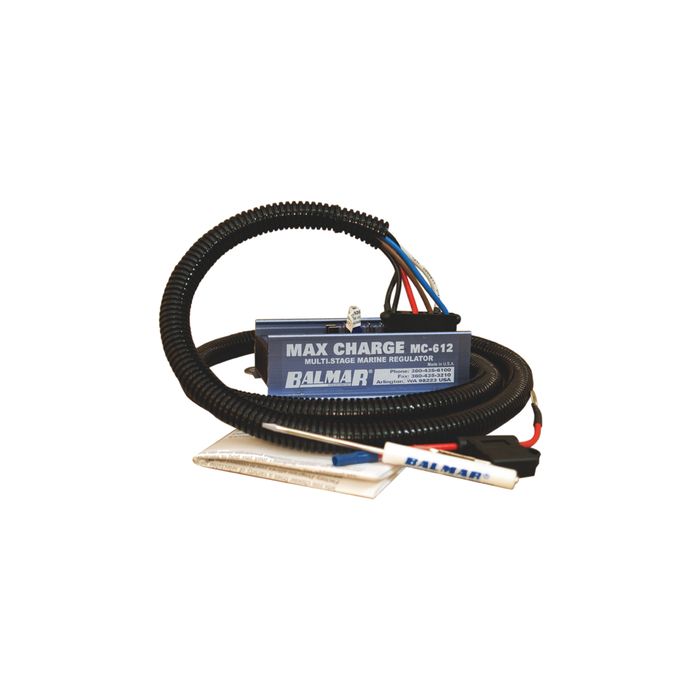

Balmar Regulator Multi-Stage 12V BLM-MC612

Max Charge regulators feature custom selectable preset programs for five battery technologies standard flooded, deep-cycle flooded, gel, AGM, spiral wound plus a default factory safe program and a separate program for vessels with voltage sensitive halogen systems. Advanced programming modes add greater user control. Easy-to-read LED numeric display. Dash and aux. lamp functions. Stator/tach terminals. Programming tool included. MC-612-H and MC-624-H include 54" wiring harness. For use on P-type alternators. Temperature sensing requires optional temperature sensors. One year limited warranty.
Series Specifications:
Selectable Program Presets: UFP (Factory Default), FDC (Flooded Deep Cycle), Gel, AGM, OPS (Optima), Standard Flooded, Halogen
Charging Stages: Delay/Soft Ramp, Bulk, Calculated Bulk, Absorption, Calculated Absorption, Float, Calculated Float
Dimensions: 4.8" L x 3-1/4" W x 1-1/2" T; (Includes power, ign., stator, field, ground [2], sense wire pigtail [12-V only])
Temperature Sensing: Batteries (2), Alternator (1);
REQUIRES OPTIONAL TEMPERATURE SENSOR CABLESFusing 10A/1A
Wiring Harness Yes
Volts 12
