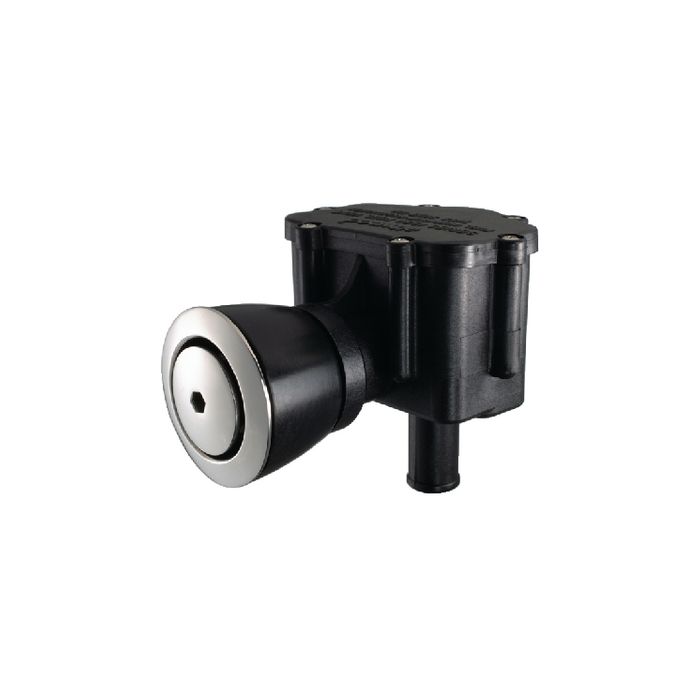

Eliminates the need to install a fuel line vent and a surge protector-now one product helps avoid fuel spills, provides fuel tank venting, and resists water intrusion into the fuel system. Meets ABYC Standards. Features:
Venting - without fuel inertia, the surge ball remains at rest, allowing unrestricted venting through all openings
Water Intrusion Protection - Baffles and traps help prevent water from entering vent line and fuel tank during normal sea conditions and washdowns
Operates in any orientation within 45° of vertical.
Withstands oil, gas, alcohol-blended fuels
Constructed of glass-filled polypropylene
Surge Protection-Inertia of surging fuel drives the surge ball up against the upper seat, closing the large vent opening. Passage is limited to the smaller openings, which reduce fuel flow and minimize spillage. When the tank becomes full it causes automatic fuel nozzles to shut off
Hose: 5/8" Max Hull Thickness: 9/16" Hole: 1-3/8" Mount: Flush
SKU: ATT-16846 Category: Fuel > Tank Vents/Surge Protector
