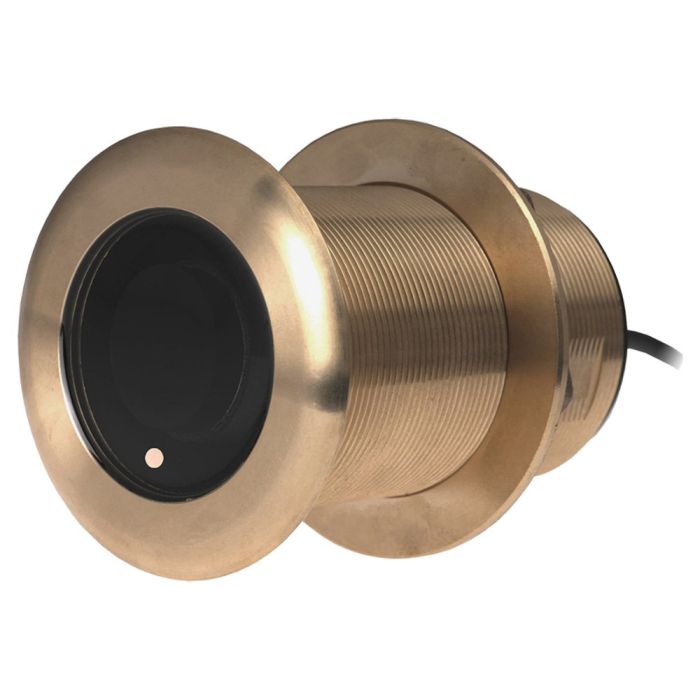

AIRMAR B60 12 DEGREE TILT THRU HULL REQ

AIRMAR B60 12 DEGREE TILT THRU HULL REQ B60 12 Degree Tilt Thru Hull Req Mix & Match Cable The B60 is a 600 W, 50/200 kHz transducer that integrates Airmars popular Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20 or 12 angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings. Features:Depth and fast-response water temperature sensing 600W of power Dual-frequency element: 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200') 200 kHz with a 12 beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boats running performance Bronze housing for fiberglass or wood hull Also available in a sta
