AIRMAR B175L BRONZE 20 DEGREE THRU HULL

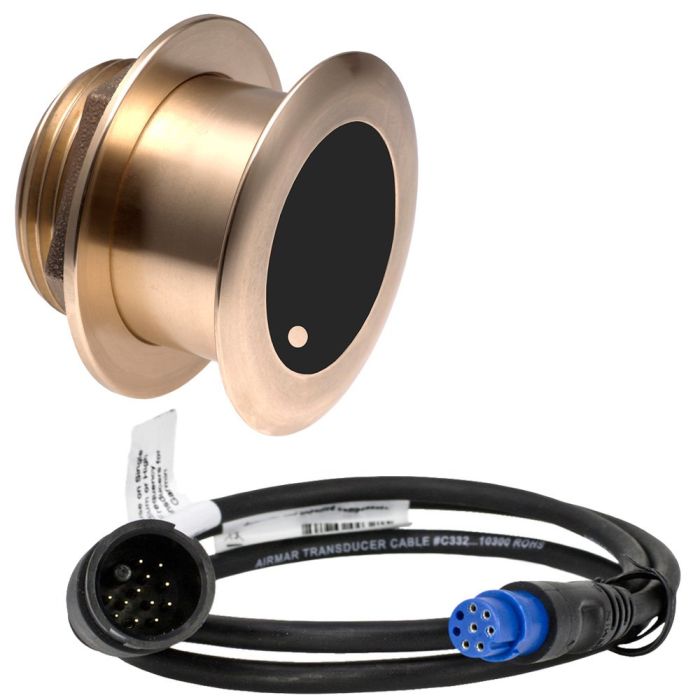

AIRMAR B175L BRONZE 20 DEGREE THRU HULL B175L Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorAirmars low-profile, Chirp-ready transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance. Tilted Element transducers have the ceramic element fixed at a 20, 12, or 0 angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Features:Garmin 8-Pin Mix & Match Cable for Chirp TransducersDepth and fast-response water-temperature sensing 1 kW of power for great deep-water performance Low frequency: 40 to 60 kHz 32 to 21 beamwidth Maximum depth of
