AIRMAR B175HW BRONZE 20 DEGREE THRU HULL

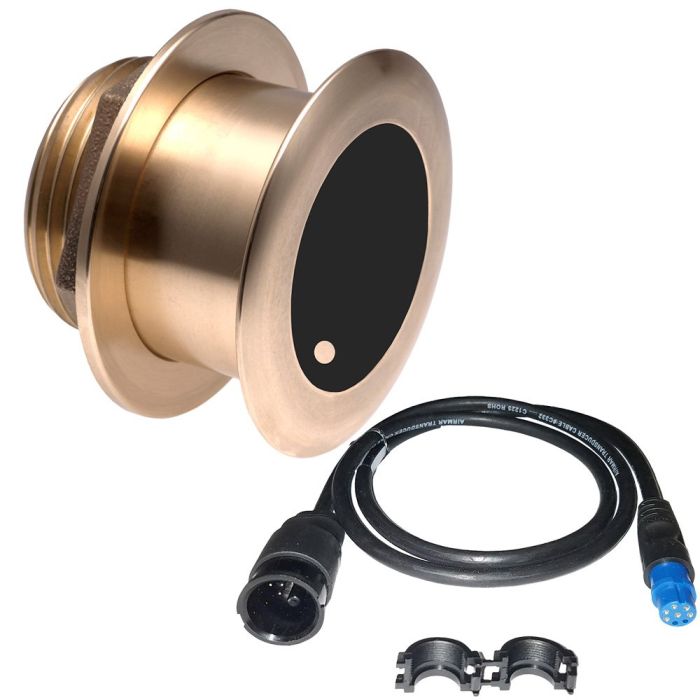

AIRMAR B175HW BRONZE 20 DEGREE THRU HULL B175HW Bronze 20 Degree Thru-Hull 1kW for Garmin with 8-Pin ConnectorGet more coverage under your boat with Airmars unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). Tilted Element transducers have the element fixed at either a 20, 12, or 0 angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It ori
