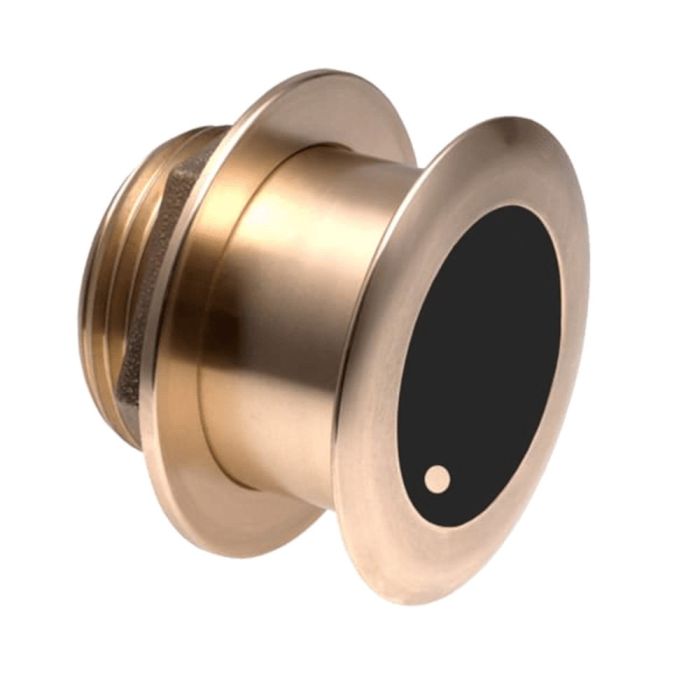

AIRMAR B164 1KW 20 DEGREE TILTED ELEMENT

AIRMAR B164 1KW 20 DEGREE TILTED ELEMENT B164 1kW 20 Degree Tilted Element 8-Pin for Garmin Step up to a 1 kWwithout a fairing! The 1 kW, flush-mount, Tilted Element transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat. Features: Fixed 20 tilted version for 16 to 24 hull deadrise anglesDepth and fast-response water-temperature sensing 1 kW of power Dual-frequency elements: 50 kHz with a wide 22 beamwidth for depth performance to 529 m (1800') 200 kHz with a 6 beamwidth for depth performance to 235 m (800') Interfaces to any 600 W or 1 kW echo sounder Engineered for center-console and trailered boats Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
