Accu-Steer HRP100-24 Hydraulic Reversing Pump Unit - 24 VDC

Accu-Steer HRP100-24 Hydraulic Reversing Pump Unit - 24 VDC

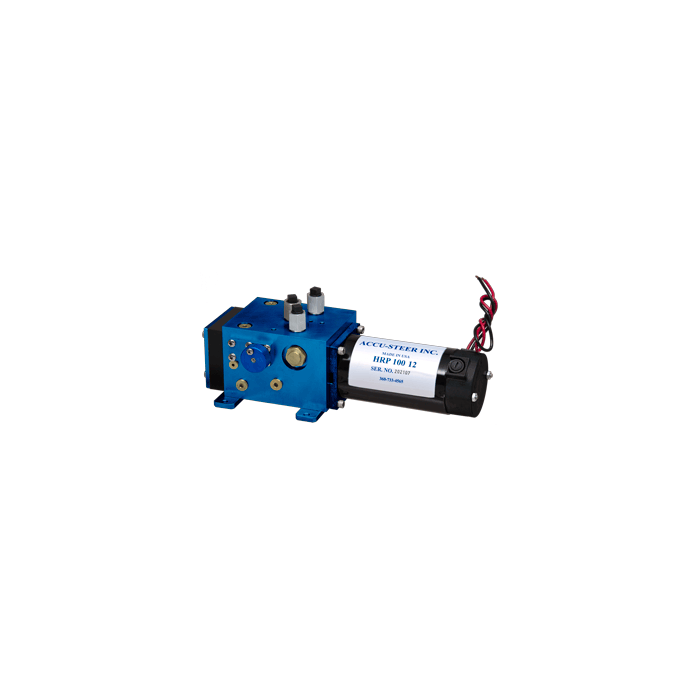

The Accu-Steer HRP100 The Accu-Steer HRP100 pump set is designed to interface hydraulic steering systems with autopilot or electric steering control systems. The output flow from the pump set determines the speed of the rudder. The output flow of the HRP100 is adjustable between 0 and 3.5 cu. in. per second. The pump has built-in pressure relief valves, which are factory set at 500 psi. This pump is recommended for medium-duty applications on hydraulic steering systems that are 50 cu. in. or smaller in volume. The compact and rugged construction provides for easy installation and long life operation. This pump model will interface with most marine autopilot systems. Available in both 12 VDC and 24 VDC.

Features:

• Adjustable flow control

• Pressure relief

• High temperature windings

• Ignition protected (UL1500)

• Heavy-duty, high efficiency drive motor with oversized accessible brush gear and ball bearing construction

• Ideal for new and retrofit applications

• Can be used with most autopilots

Boat Length - Max (Feet) = NONE | Capacity - Max Ram (CU) = NONE | Drive Type = NONE | Feedback Type = NONE | Pilot Type = NONE | Remote Capable = NONE | Turn Patterns = NONE | Vessel Displacement - Max (Pounds) = NONE

Category: Marine Navigation & Equipment | Autopilots

Manufacturer Part Number: HRP100-24
